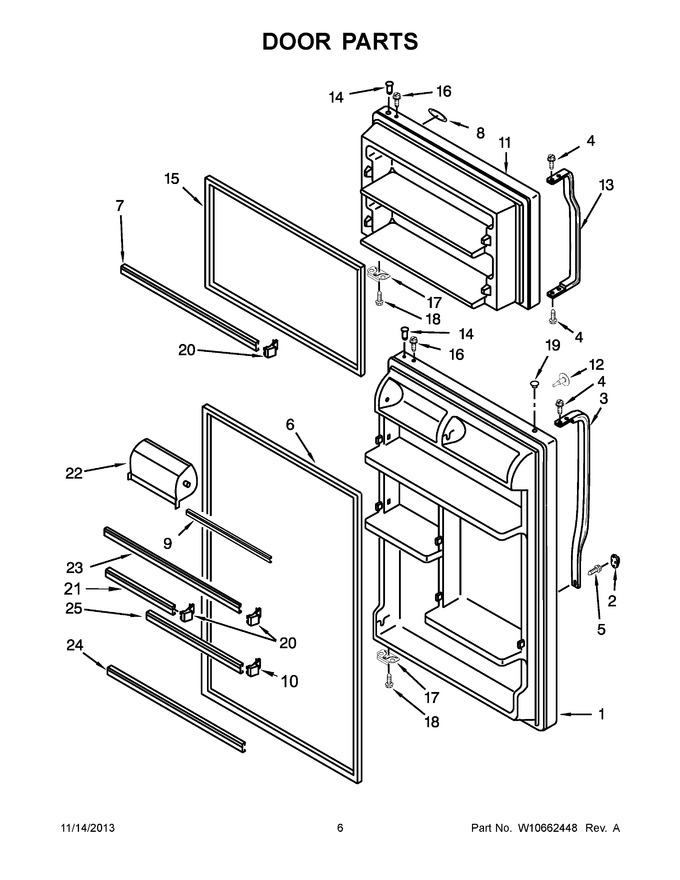

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10371932 | Refrigerator Door (includes Illus. 6) (stainless) |
|
- | |||||
| 1 | 2183948 | Refrigerator Door (includes Illus. 6) (white) |
|
- | |||||
| 1 | 2213386 | Refrigerator Door (includes Illus. 6) (black) |
|
- | |||||
| 2 | 2193143W | Handle, Trim (white) |
|
$ 21.66 | |||||
| 2 | 2193143B | Handle, Trim (black) |
|
- | |||||
| 3 | WP2254533W | Handle, Refrigerator (white) (Replaces: 2254533W) |
|
$ 180.55 | |||||
| 3 | 2254533B | Handle, Refrigerator (black) |
|
$ 68.18 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 6 | 2159057 | Door Gasket, Magnetic (beige) (Replaces: 2202874) |
|
Immediately | $ 164.66 | ||||
| 6 | 2177305 | Door Gasket, Magnetic (black) (Replaces: 2202881) |
|
$ 274.07 | |||||
| 7 | WPW10463615 | Trim, Door Shelf (Replaces: W10463615) |
|
$ 116.39 | |||||
| 8 | WPW10170766 | Nameplate (badge, Maytag) (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 9 | WP2201061 | Trim, Door Shelf (Replaces: W10421482) |
|
$ 124.32 | |||||
| 10 | WP2195915 | Trim Endcap (Replaces: 2195915) |
|
$ 13.72 | |||||
| 11 | 2182487 | Freezer Door (includes Illus. 15) (white) |
|
- | |||||
| 11 | W10371931 | Freezer Door (includes Illus. 15) (stainless) |
|
- | |||||
| 11 | 2200710 | Freezer Door (includes Illus. 15) (black) |
|
- | |||||
| 12 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 12 | WP2189009 | Hole Plug (black) (Replaces: 2189009) |
|
$ 7.61 | |||||
| 13 | WPW10292303 | Handle, Freezer (black) (Replaces: W10292303) |
|
$ 144.19 | |||||
| 13 | WPW10291249 | Handle, Freezer (white) (Replaces: W10291249) |
|
$ 155.04 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 15 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 225.08 | |||||
| 15 | 2159327 | Door Gasket, Magnetic (beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 16 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 19 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 19 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 20 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 21 | WPW10463613 | Trim, Door Shelf (Replaces: W10463613) |
|
$ 94.32 | |||||
| 22 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 23 | WPW10464028 | Trim, Door Shelf (Replaces: W10464028) |
|
$ 124.15 | |||||
| 24 | WPW10421484 | Trim, Door Shelf (Replaces: W10421484) |
|
$ 136.25 | |||||
| 25 | WPW10463614 | Trim, Door Shelf (Replaces: W10463614) |
|
$ 112.52 |
