SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts

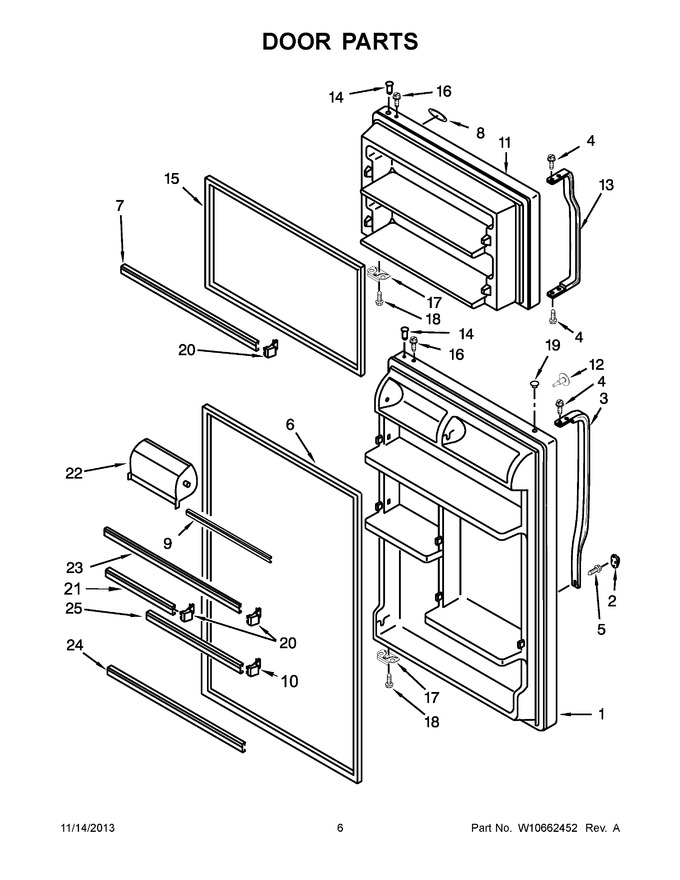

04 - Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10371932		Refrigerator Door (includes Illus. 6) (stainless)		Appelez-nous	-
2	2193143B		Handle, Trim (black)		Appelez-nous	-
3	2254533B		Handle, Refrigerator (black)				$ 68.18
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
6	2177305		Door Gasket, Magnetic (black)   (Replaces: 2202881)				$ 304.58
7	WPW10463615		Trim, Door Shelf   (Replaces: W10463615)				$ 116.39
8	WPW10170766		Nameplate (badge, Maytag)   (Replaces: W10170766)			Immediately	$ 70.50
9	WP2201061		Trim, Door Shelf   (Replaces: W10421482)				$ 124.32
10	WP2195915		Trim Endcap   (Replaces: 2195915)				$ 13.72
11	W10371931		Freezer Door (includes Illus. 15) (stainless)		Appelez-nous	-
12	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
13	WPW10292303		Handle, Freezer (black)   (Replaces: W10292303)				$ 144.19
14	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
15	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 324.69
16	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
19	WP2212651		Hole Plug (black)   (Replaces: 2212651)			Immediately	$ 24.21
20	WP2156003		End Cap, Door Trim   (Replaces: 2156003)			Immediately	$ 13.25
21	WPW10463613		Trim, Door Shelf   (Replaces: W10463613)				$ 94.32
22	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 52.84
23	WPW10464028		Trim, Door Shelf   (Replaces: W10464028)				$ 124.15
24	WPW10421484		Trim, Door Shelf   (Replaces: W10421484)				$ 136.25
25	WPW10463614		Trim, Door Shelf   (Replaces: W10463614)				$ 112.52

    View Diagram in Separate Window       Print Part List
