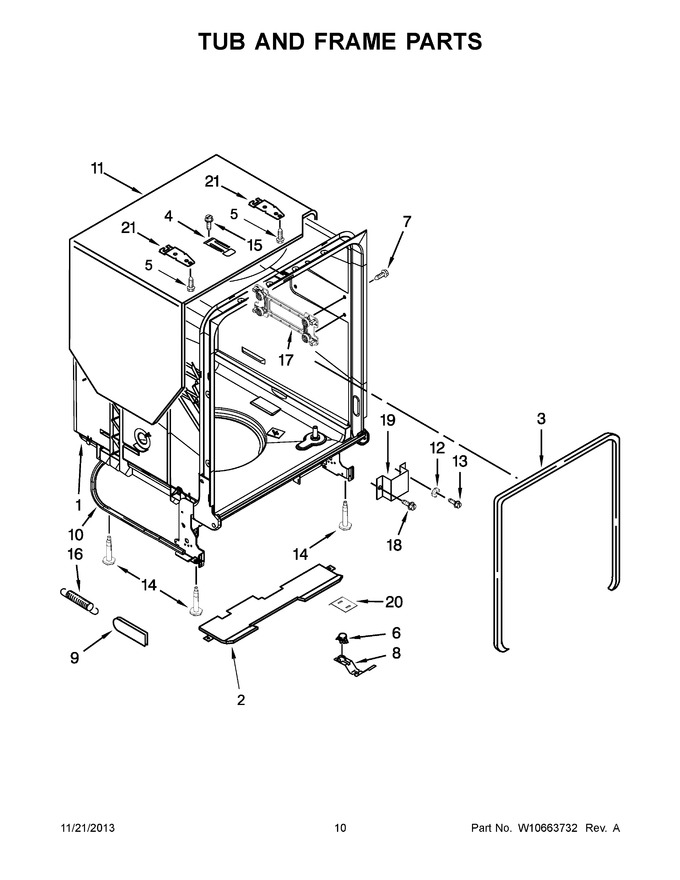

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513974 | Tub Assembly (includes Heater Assembly) (Replaces: W10266935) |
|
Immediately | $ 827.72 | ||||
| 2 | WPW10746770 | Sound Insulation, (bottom) (Replaces: W10195368) |
|
$ 44.84 | |||||
| 3 | W11768590 | Seal, Tub (Replaces: W10524469) |
|
Immediately | $ 32.75 | ||||
| 4 | WPW10544004 | Strike, Latch (Replaces: W10570656) |
|
Immediately | $ 45.69 | ||||
| 5 | WPW10277003 | Screw (Replaces: W10277003) |
|
$ 7.55 | |||||
| 6 | WP661566 | Thermostat (Replaces: 3371618) |
|
Immediately | $ 31.28 | ||||
| 7 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 8.14 | ||||
| 8 | W10539489 | Clip, Thermostat |
|
$ 20.14 | |||||
| 9 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 10 | WPW10271695 | Bottom Support (Replaces: W10271695) |
|
$ 41.04 | |||||
| 11 | W10877094 | Shield, Tub Sound (Replaces: 8573239) |
|
$ 233.63 | |||||
| 12 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 13 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 14 | 8193716 | Leveler, Leg (Replaces: W10304228) |
|
Immediately | $ 88.96 | ||||
| 15 | W10165274 | Screw |
|
$ 13.47 | |||||
| 16 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 36.34 | ||||
| 17 | WPW10505751 | Wheel & Mount Assembly (Replaces: W10505751) |
|
$ 123.19 | |||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 20 | W10321574 | Shield, Thermostat (Replaces: W10339699) |
|
$ 25.83 | |||||
| 21 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 |
