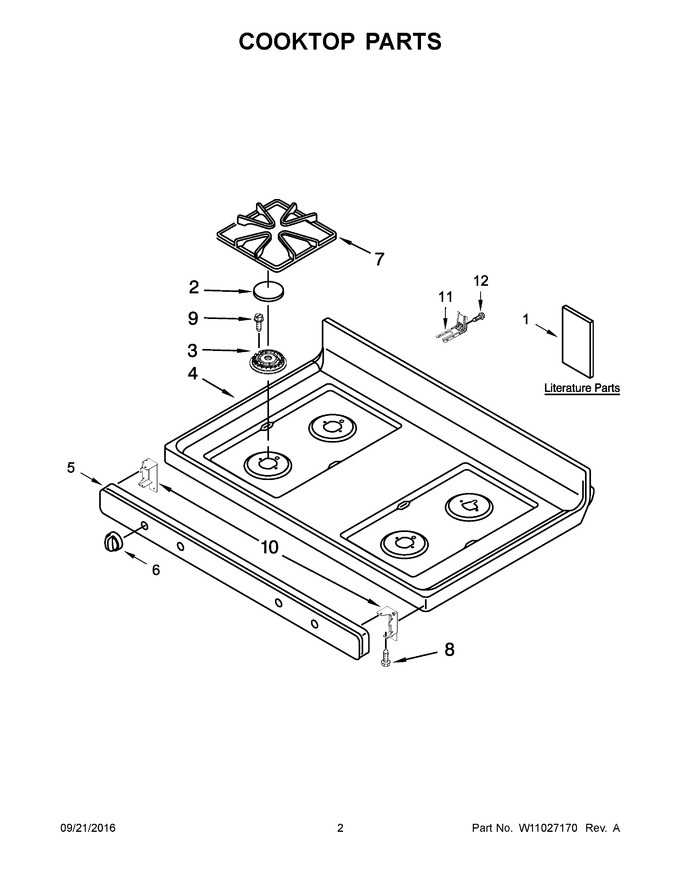

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10545337		Instructions, Installation		Appelez-nous	-
2	WPW10170554		Set, Burner Cap (black)   (Replaces: W10170554)				$ 140.26
3	WPW10515452		Assembly, Burner (12k) (left Front)   (Replaces: W10515452)				$ 88.90
4	8272253		Cooktop (black)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 176.18
6	WPW10200193		Knob, Control (black)   (Replaces: W10200193)				$ 24.18
7	WPW10268483		Kit, Grate (black)   (Replaces: 8053580)				$ 140.02
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W10545339		Owners Manual		Appelez-nous	-
1B	W10538793		Sheet, Tech (english)		Appelez-nous	-
1C	W10538794		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear & Right Front)   (Replaces: W10515454)				$ 115.74
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
