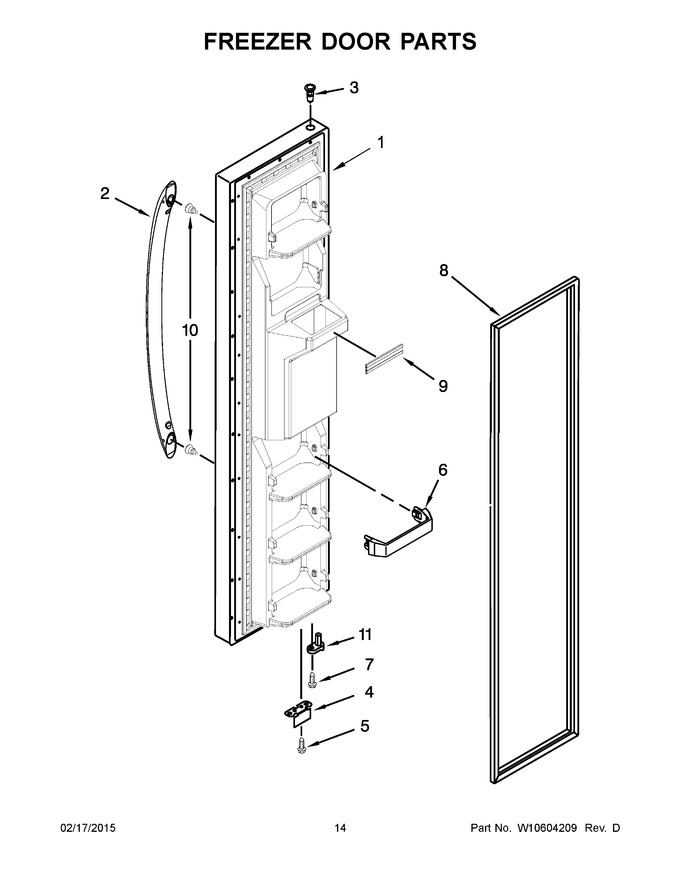

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10436758		Door, Freezer (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10848410		Handle (white)   (Replaces: W10357236)				$ 203.72
3	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
4	2306940		Bracket, Door Stop (silver)				$ 101.93
5	WP489483		Screw   (Replaces: 489420)				$ 11.41
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159074		Gasket, Door (beige)   (Replaces: 2309532)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	WP2223752		Thimble, Cam   (Replaces: 2223752)				$ 21.16
1A	W10436759		Door, Freezer (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1B	W10436761		Door, Freezer (includes Item 8 And Dispenser Front Parts) (biscuit/bisque)		Appelez-nous	-
1C	W10436760		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2A	W10805245		Handle (black)   (Replaces: W10557412)				$ 227.50
2B	WPW10398789		Handle (biscuit/bisque)   (Replaces: W10398789)				$ 265.80
2C	W10899551		Handle (brushed Aluminum)   (Replaces: W10407272)			Immediately	$ 188.82
8A	2159082		Gasket, Door (black)   (Replaces: 2309533)				$ 332.49
8B	W10136735		Gasket, Door (grey)   (Replaces: 2327164)				$ 254.84
