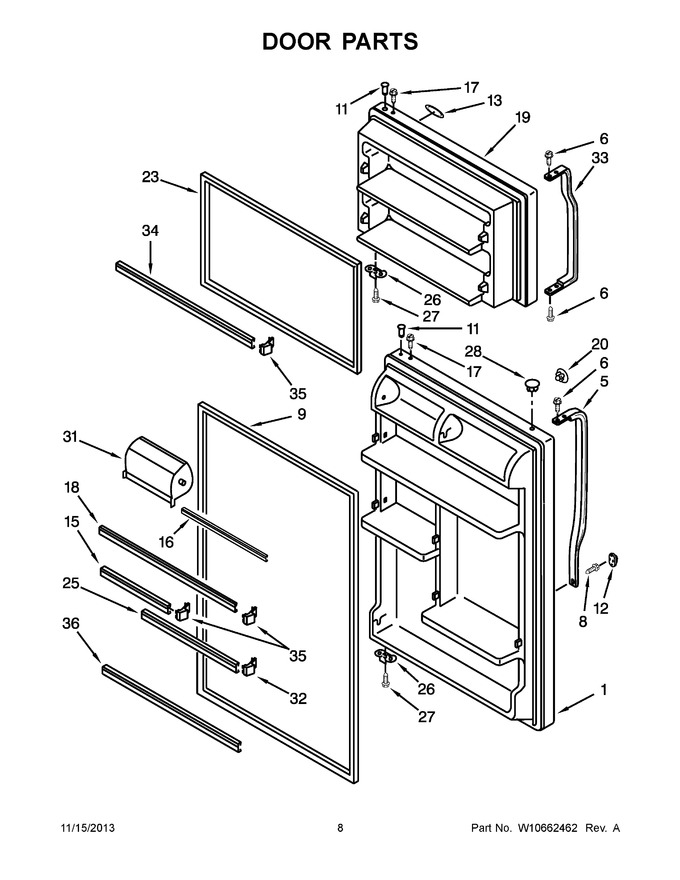

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10371932 | Refrigerator Door (includes Illus. 9 & 11) (stainless) |
|
- | |||||
| 5 | WP2326169B | Handle, Refrigerator (black) (Replaces: 2326169B) |
|
$ 154.75 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 9 | 2177305 | Door Gasket, R.c. Magnetic (black) (Replaces: 2202881) |
|
$ 290.07 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 12 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 11.43 | |||||
| 13 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 15 | WPW10463613 | Trim, Door Shelf (Replaces: W10463613) |
|
$ 94.32 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: W10421482) |
|
$ 124.32 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 18 | WPW10464028 | Trim, Door Shelf (Replaces: W10464028) |
|
$ 124.15 | |||||
| 19 | W10371931 | Freezer Door (includes Illus. 11 & 23) (stainless) |
|
- | |||||
| 20 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.61 | |||||
| 23 | 2177304 | Door Gasket, F.c. Magnetic (black) (Replaces: 2214968) |
|
$ 324.69 | |||||
| 25 | WPW10463614 | Trim, Door Shelf (Replaces: W10463614) |
|
$ 112.52 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 50.33 | ||||
| 32 | WP2195915 | Trim Endcap (Replaces: 2195915) |
|
$ 13.72 | |||||
| 33 | WP2202806B | Handle, Freezer (black) (Replaces: 2202806B) |
|
$ 154.57 | |||||
| 34 | WPW10463615 | Trim, Door Shelf (Replaces: W10463615) |
|
$ 116.39 | |||||
| 35 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 36 | WPW10421484 | Trim, Door Shelf (Replaces: W10421484) |
|
$ 136.25 |
