New Model Search:

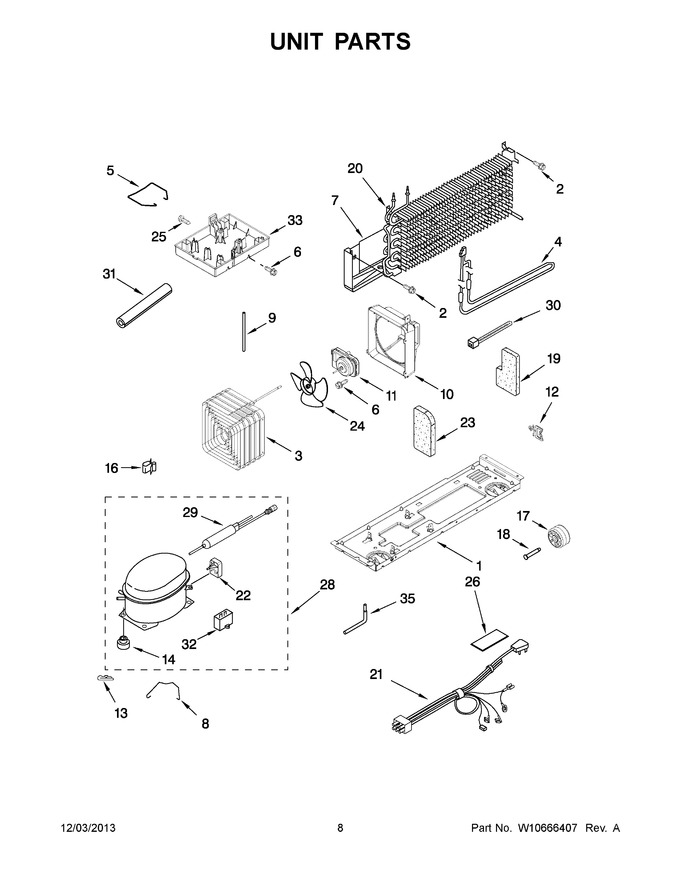

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10222450) |
|
$ 146.78 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | 2264597 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 7 | 2319224 | Shield, Heat |
|
$ 116.21 | |||||
| 8 | 2263628 | Clip, Combo |
|
- | |||||
| 9 | 2264278 | Tube, Drain |
|
$ 79.77 | |||||
| 10 | W10358308 | Fan, Scroll |
|
$ 151.24 | |||||
| 11 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 12 | 2264278 | Tube, Drain |
|
$ 79.77 | |||||
| 13 | 24364001 | Pin, Cotter |
|
- | |||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
$ 7.55 | |||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 21 | W10151680 | Wire Assembly, Unit |
|
- | |||||
| 22 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 109.99 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.79 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 28 | W10160407 | Compressor (Replaces: W10200250) |
|
$ 629.92 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 31 | 2264838 | Sleeve |
|
$ 92.28 | |||||
| 32 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 33 | WP2263928 | Tray, Evaporator (Replaces: 2263928) |
|
$ 149.02 | |||||
| 35 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| NI | N/P | Refrigerant Charge 3.35 Oz. (r-134) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
