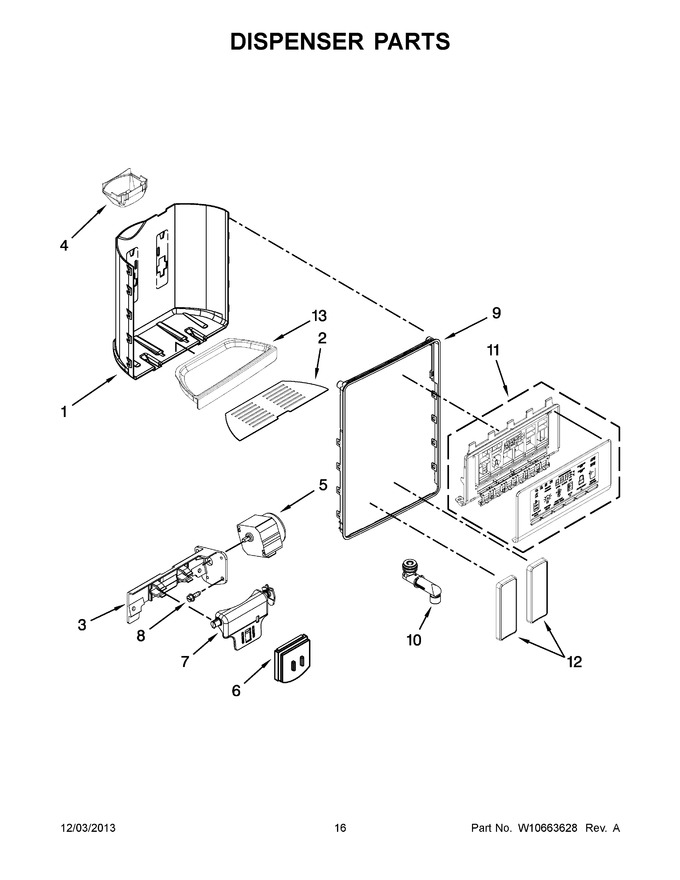

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276209 | Grate, Drip Tray (Replaces: W10276209) |
|
$ 81.55 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 23.94 | ||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10838126 | Assembly, Separator (Replaces: W10493171) |
|
$ 164.33 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10448931 | Trim Ring (chromium Frost) |
|
- | |||||
| 10 | W11669938 | Assembly, Spigot (Replaces: W10386774) |
|
$ 86.58 | |||||
| 11 | WPW10478644 | Electronic Control Assembly (Replaces: W10478644) |
|
$ 283.54 | |||||
| 12 | W11624941 | Pad, Ice & Water (Replaces: W10370582) |
|
$ 70.82 | |||||
| 13 | W10276225 | Drip Tray (satina) |
|
$ 74.06 |
