01 - Cover Sheet


02 - Door Panel Parts

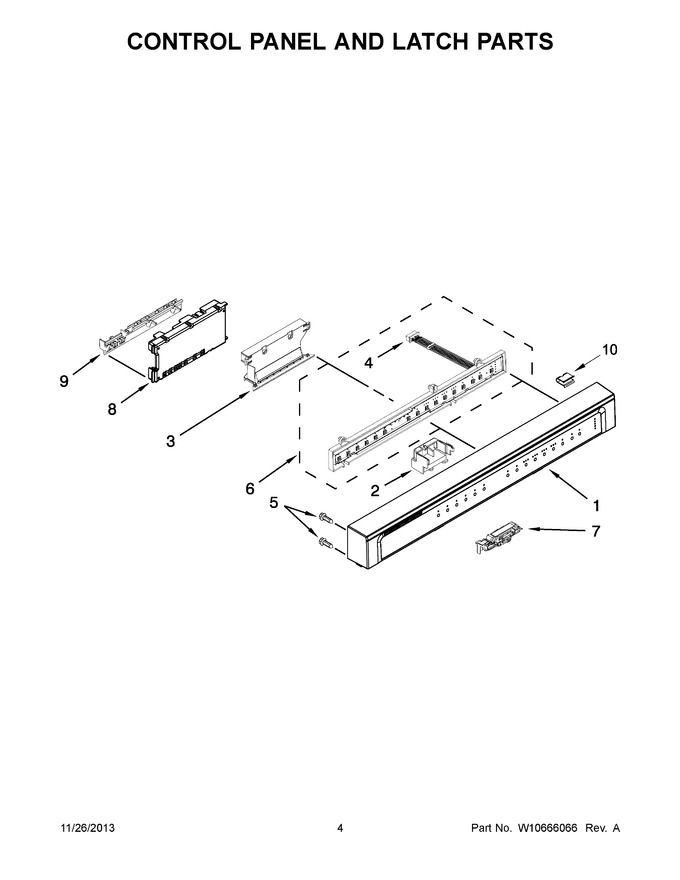

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10479854		Console Assembly (black)   (Replaces: W10479854)				$ 219.12
1	WPW10505573		Console Assembly (white)   (Replaces: W10505573)				$ 199.77
1	W10350327		Console Assembly (biscuit/bisque)   (Replaces: W10505574)		Appelez-nous	-
1	WPW10350328		Console Assembly (universal Silver)   (Replaces: W10505575)				$ 139.26
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W10475758		Handle Pocket (white)   (Replaces: W10475759)				$ 20.70
3	W10475758		Handle Pocket (biscuit/bisque)   (Replaces: W10475760)				$ 20.70
3	W10475758		Handle Pocket (black)				$ 20.70
4	W10552538		Jumper, Wire		Appelez-nous	-
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	WPW10629167		Housing Assembly, User Interface   (Replaces: W10440699)				$ 337.76
7	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10574864)			Immediately	$ 34.18
8	W10597045		Control, Electronic   (Replaces: W10539783)			Immediately	$ 194.91
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
10	W10815836		Clip, Panel   (Replaces: W10485367)				$ 8.25

    View Diagram in Separate Window       Print Part List
