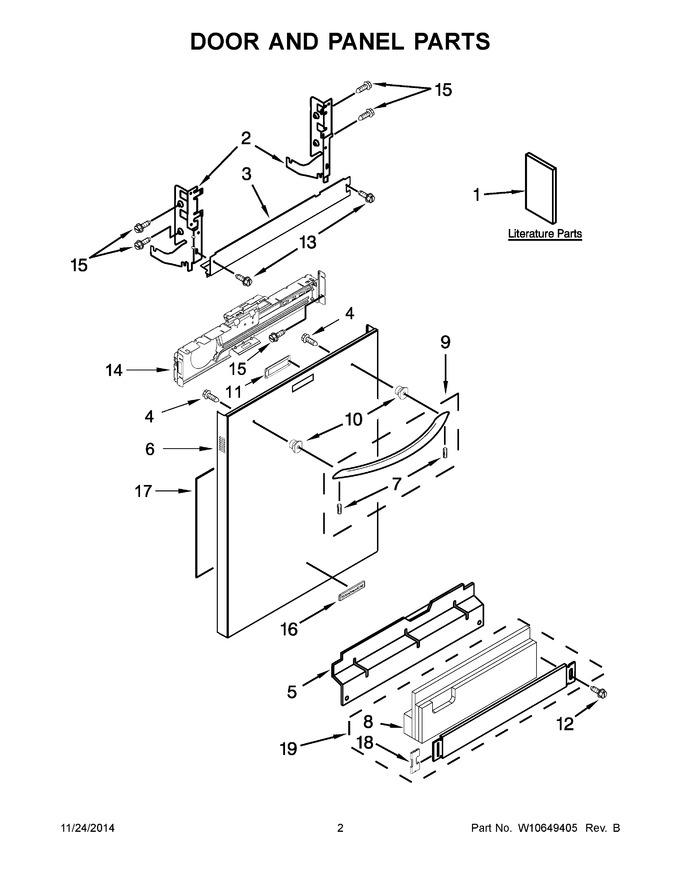

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10579129 | Instructions, Installation |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10320859) |
|
Immediately | $ 32.88 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 6 | WPW10195869 | Panel, Front (includes 4, 10, 11 & 16) (stainless) (Replaces: W10195869) |
|
$ 391.97 | |||||
| 7 | WPW10307614 | Screw (Replaces: W10307614) |
|
Immediately | $ 7.55 | ||||
| 8 | W10831329 | Insulation, Four Layer (Replaces: W10526105) |
|
Immediately | $ 43.30 | ||||
| 9 | W10195738 | Handle Assembly (stainless) |
|
- | |||||
| 10 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 11 | W10457051 | Window, Display |
|
$ 67.21 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 88.32 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 17 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 18 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 19 | W10871196 | Toe Panel (black) (Replaces: W10586590) |
|
$ 174.04 | |||||
| 1A | W10710652 | Energy Guide |
|
- | |||||
| 1B | W10579120 | Use & Care Guide |
|
- | |||||
| 1C | W10543820 | Tech Sheet, English |
|
- | |||||
| 1D | W10543821 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
