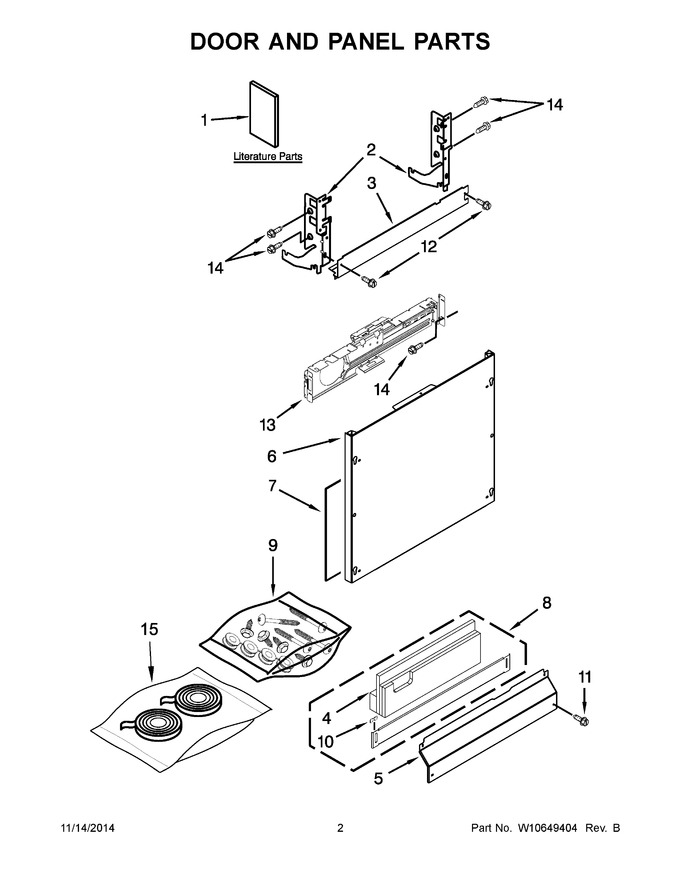

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10579129		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Vapor Barrier Assembly   (Replaces: W10320859)			Immediately	$ 32.88
4	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 43.30
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
6	W11113792		Panel Front (ready)   (Replaces: W10292632)			Immediately	$ 373.42
7	W10234565		Insulation, Front Panel				$ 69.57
8	W10871196		Toe Panel (black)   (Replaces: W10586590)				$ 174.04
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 75.05
10	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
14	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
15	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 29.80
1A	W10710652		Energy Guide		Appelez-nous	-
1B	W10579120		Use & Care Guide		Appelez-nous	-
1C	W10543820		Tech Sheet, English		Appelez-nous	-
1D	W10543821		Tech Sheet, French		Appelez-nous	-
1E	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
