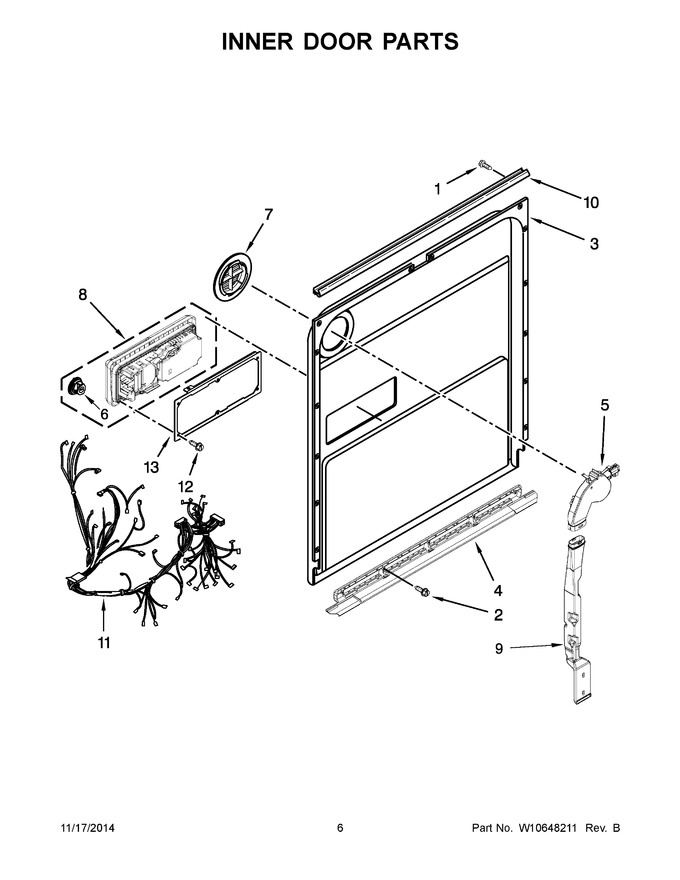

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 3 | WPW10467367 | Inner Door & Mastic Assembly (Replaces: W10467367) |
|
$ 382.53 | |||||
| 4 | WPW10497235 | Seal, Door Bottom (Replaces: W10497235) |
|
Immediately | $ 10.19 | ||||
| 5 | WPW10469574 | Vent Assembly (Replaces: W10469574) |
|
Immediately | $ 95.33 | ||||
| 6 | WPW10524919 | Knob, Rinse Aid (Replaces: W10524919) |
|
Immediately | $ 30.06 | ||||
| 7 | WPW10195032 | Deflector, Vent (Replaces: W10195032) |
|
Immediately | $ 80.13 | ||||
| 8 | W11032769 | Dispenser, Assembly (Replaces: W10723269) |
|
Immediately | $ 135.92 | ||||
| 9 | WPW10195028 | Duct, Vent (black) (Replaces: W10195028) |
|
$ 80.12 | |||||
| 10 | WPW10195007 | Seal, Console/door (Replaces: W10195007) |
|
$ 166.86 | |||||
| 11 | W10861608 | Wiring Harness (Replaces: W10514918) |
|
Immediately | $ 288.05 | ||||
| 12 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 13 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 | |||||
| 9A | W10195463 | Duct, Vent (white) |
|
$ 57.23 |
