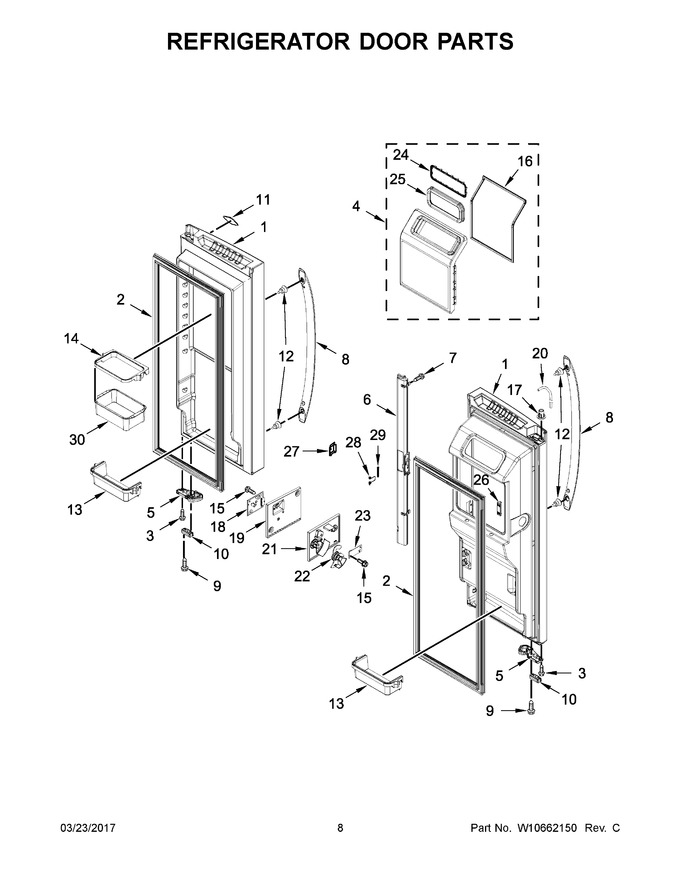

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10561911 | Door, Refrigerator (includes Door Gasket) Left Hand (stainless) (Replaces: W10561911) |
|
$ 1,611.58 | |||||
| 2 | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 296.27 | ||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | WPW10549590 | Door, Ice (Replaces: W10549590) |
|
$ 332.23 | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 255.29 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | WPW10557401 | Handle, Door (stainless) (Replaces: W10557401) |
|
$ 286.47 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 11 | WPW10427988 | Nameplate (grey) (Replaces: W10427988) |
|
$ 67.54 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | W10468069 | Trivet, 2 Liter |
|
$ 57.04 | |||||
| 14 | WPW10447153 | Frame, Bin (Replaces: W10447153) |
|
$ 224.89 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 62.47 | |||||
| 17 | W10562834 | Clip, Tube (Replaces: W10245516) |
|
$ 14.09 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 296.07 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 40.05 | |||||
| 20 | W10394073 | Tube, Water |
|
$ 113.63 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 80.77 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 10.04 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 205.25 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 29.09 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 44.07 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 20.84 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 71.69 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 29 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 30 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 75.09 | ||||
| 1A | LW10341284 | Door, Refrigerator (includes Door Gasket) Right Hand (stainless) (Replaces: W10341284) |
|
$ 1,100.87 | |||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 |
