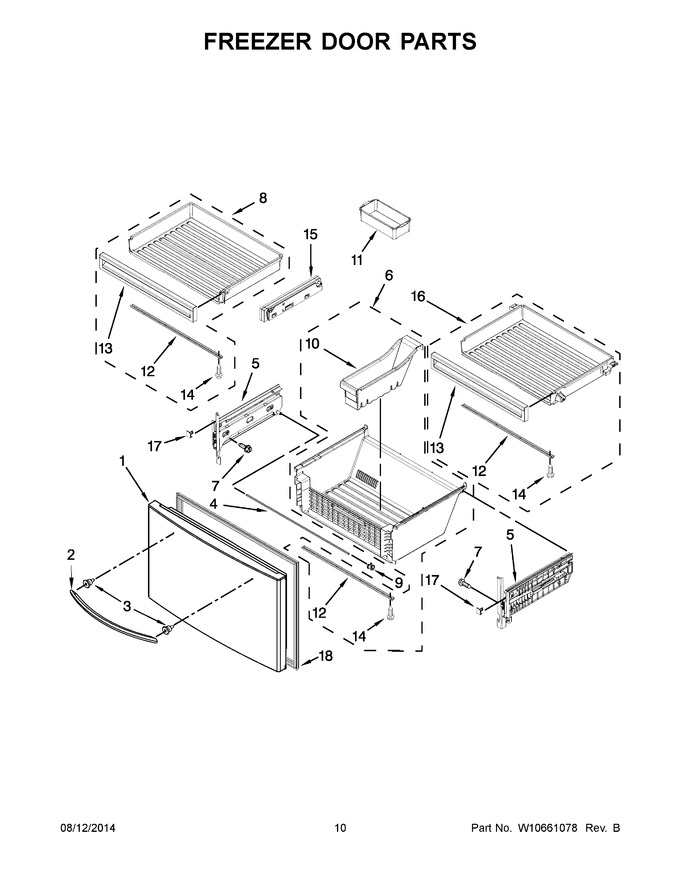

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10341279 | Door, Freezer (stainless) |
|
- | |||||
| 2 | W10827046 | Handle, Door (stainless) (Replaces: W10557413N) |
|
Immediately | $ 232.68 | ||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 98.10 | |||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10625067) |
|
Immediately | $ 529.03 | ||||
| 6 | W10594047 | Bin, Lower |
|
$ 307.51 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | WPW10493169 | Bin, Upper (Replaces: W10493169) |
|
Immediately | $ 150.69 | ||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10248509) |
|
$ 11.39 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 62.14 | |||||
| 11 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 83.43 | ||||
| 12 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 13 | W11175811 | Front, Upper Pan (Replaces: W10488124) |
|
$ 328.41 | |||||
| 14 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 15 | W10850332 | Adapter, Upper Pan (left Hand) (Replaces: W10619219) |
|
$ 141.59 | |||||
| 16 | W10858802 | Assembly, Center Pan (Replaces: W10493164) |
|
Immediately | $ 302.45 | ||||
| 17 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 83.65 | |||||
| 18 | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 267.66 | ||||
| 15A | W10858092 | Adapter, Upper Pan (right Hand) (Replaces: W10619218) |
|
$ 154.11 | |||||
| 17A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 86.71 | |||||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10625068) |
|
Immediately | $ 529.03 |
