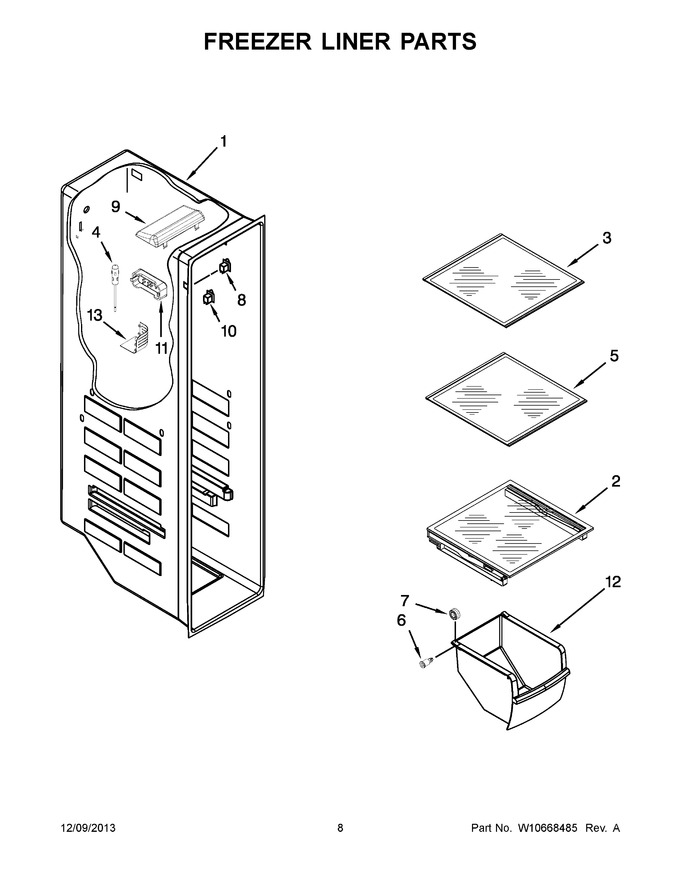

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10463654 | Cover Assembly (Replaces: W10463654) |
|
$ 343.73 | |||||
| 3 | WPW10269184 | Shelf, Upper Glass (Replaces: W10269184) |
|
$ 267.21 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | W11094295 | Shelf, Lower Glass (Replaces: W10278132) |
|
$ 227.34 | |||||
| 6 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 8 | W11123943 | Switch, Rocker Arm (Replaces: W10419177) |
|
$ 36.66 | |||||
| 9 | WPW10515057 | Led Light Assembly, Tapered Lens (Replaces: W10515057) |
|
Immediately | $ 47.29 | ||||
| 10 | W11457217 | Switch, Rocker Arm, Combination(freezer) (Replaces: 1115373) |
|
$ 40.09 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | WPW10260985 | Pan, Freezer (Replaces: W10260985) |
|
$ 156.89 | |||||
| 13 | W10260382 | Lens, Light (Replaces: W10294700) |
|
$ 80.58 |
