SELECT A DIAGRAM

01 - Cover Sheet

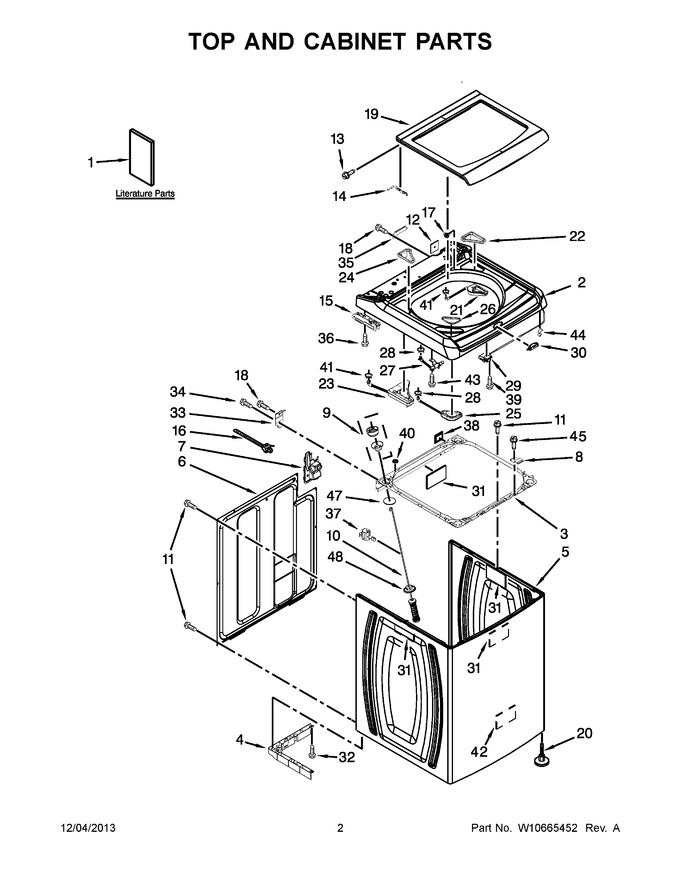

02 - Top And Cabinet Parts


03 - Control Panel Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10410358		Installation Instructions		Appelez-nous	-
1	W10550268		Energy Guide		Appelez-nous	-
1	W10405149		Tech Sheet		Appelez-nous	-
1	W10550273		Owners Manual		Appelez-nous	-
1	W10410000		Wiring Diagram		Appelez-nous	-
2	W10551837		Top (chrome Shadow)				$ 190.54
2	W10551836		Top (white)				$ 239.30
3	W10386349		Frame Assembly, Cabinet Top		Appelez-nous	-
4	WPW10378013		Riser, Washer (rear Left)   (Replaces: W10378013)				$ 117.15
4	W10378012		Riser, Washer (rear Right)		Appelez-nous	-
4	WPW10370996		Riser, Washer (front Left)   (Replaces: W10370996)				$ 117.21
4	W10370995		Riser, Washer (front Right)				$ 45.57
5	8566097		Cabinet (white)		Appelez-nous	-
5	W10304179		Cabinet (chrome Shadow)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 18.83
9	W10256551		Bushing - Upper Suspension (set Of4 - Includes Suspension Balls)		Appelez-nous	-
10	W10440786		Damper Assembly, Tub Suspension   (Replaces: W10368626)			Immediately	$ 85.87
11	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
12	W10161707		Top Foam Seal		Appelez-nous	-
13	WPW10119828		Screw, Lid Hinge   (Replaces: W10119828)			Immediately	$ 7.55
14	WP8563964		Hinge Arm, Lid   (Replaces: 8563964)			Immediately	$ 9.19
15	WPW10309357		Hinge, Spring Assembly (left Hand)   (Replaces: W10309357)				$ 153.54
15	WPW10309358		Hinge, Spring Assembly (right Hand)   (Replaces: W10309358)				$ 148.01
16	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
17	WPW10119519		Bearing, Lid Hinge   (Replaces: W10119519)				$ 8.09
18	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
19	WPW10550304		Lid And Bumper Assembly (chrome Shadow)   (Replaces: W10550304)				$ 509.36
19	WPW10110852		Lid And Bumper Assembly (white)   (Replaces: W10110852)				$ 437.85
20	WPW10363890		Foot Assembly, Leveling   (Replaces: W10363890)				$ 13.84
21	WPW10553370		Dispenser, Fabric Softener   (Replaces: W10553370)			Immediately	$ 133.57
22	WPW10136371		Bezel, Fabric Softener Dispenser (white)   (Replaces: W10136371)				$ 31.00
22	W10306027		Bezel, Fabric Softener Dispenser (gray)				$ 22.47
23	WPW10554110		Dispenser, Bleach   (Replaces: W10554110)				$ 142.15
24	W10306029		Bezel, Bleach Dispenser (grey)				$ 28.57
24	WPW10131523		Bezel, Bleach Dispenser (white)   (Replaces: W10131523)				$ 8.54
25	WPW10552116		Dispenser, Detergent   (Replaces: W10552116)				$ 173.54
26	WP8563877		Bezel, Detergent Dispenser (white)   (Replaces: 8563877)				$ 31.91
26	W10306028		Bezel, Detergent Dispenser (grey)				$ 14.72
27	WPW10552206		Nozzle Assembly, Fresh Water   (Replaces: W10552206)				$ 93.87
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	W10143661		Bezel, Lid Lock (gray)				$ 20.76
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 8.38
32	W10406220		Screw				$ 13.53
33	W10432012		Hinge, Top				$ 89.46
34	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 8.38
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	W11096159		Damper, Sound   (Replaces: W10414221)				$ 28.73
43	W11700520		Screw   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.89
45	8563892		Screw		Appelez-nous	-
47	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 8.12
48	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 28.79

    View Diagram in Separate Window       Print Part List
