01 - Cover Sheet
02 - Top And Cabinet Parts

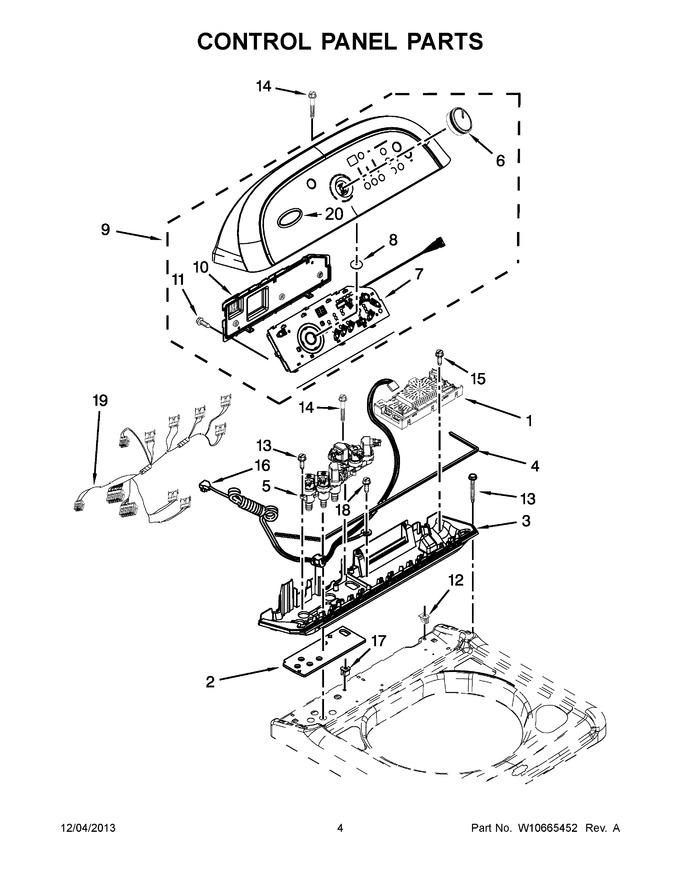

03 - Control Panel Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643260 | Control Unit Assembly, Machine And Motor |
|
$ 226.47 | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8578550 | Tray Assembly (white) |
|
$ 45.19 | |||||
| 3 | W10309229 | Tray Assembly (gray) |
|
- | |||||
| 4 | 8546616 | Gasket, Console/tray |
|
$ 60.11 | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 142.62 | ||||
| 6 | WPW10576632 | Assembly, Control Knob (grey) (Replaces: W10576632) |
|
$ 56.06 | |||||
| 6 | WPW10567081 | Assembly, Control Knob (black) (Replaces: W10567081) |
|
$ 62.21 | |||||
| 7 | WPW10562818 | User Interface (Replaces: W10562818) |
|
$ 297.68 | |||||
| 8 | 8572039 | Seal, User Interface |
|
- | |||||
| 9 | W10521079 | Assembly, Console (chrome Shadow) |
|
$ 389.05 | |||||
| 9 | W10521078 | Assembly, Console (white) |
|
- | |||||
| 10 | 8564265 | Cover, Rear- User Interface |
|
$ 142.60 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push In |
|
- | |||||
| 13 | WPW10052600 | Screw (Replaces: W10052600) |
|
$ 7.30 | |||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 7.30 | |||||
| 16 | WPW10547372 | Cord, Power (Replaces: W10547372) |
|
$ 92.15 | |||||
| 17 | 98460 | Nut, Push In |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10404419 | Upper Harness (Replaces: W10404419) |
|
$ 77.97 | |||||
| 20 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 |
