Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107554SQ Door, Refrigerator (stainless)   (Replaces: 13107554S) Special Order $ 1,166.29

1 13109401WQ Door, Refrigerator (white)   (Replaces: 13109401W) Special Order $ 1,073.65

1 13109401BQ Door, Refrigerator (black)   (Replaces: 13109401B) Special Order $ 1,073.65

2 WPW10661886 Screw   (Replaces: W10460893) In-Stock Immediately $ 12.88

5 WPW10371194 Bucket, Medium   (Replaces: W10371194) In-Stock Immediately $ 77.23

6 WP12246608 Plug-button (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

6 WP12246610 Plug, Button (stainless)   (Replaces: 12246610) In-Stock Immediately $ 8.15

6 WP67001130 Plug-button (white)   (Replaces: 12246607) In-Stock Immediately $ 5.98

7 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

7 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

8 W10443314 Gasket, Door (grey)   (Replaces: W10571963) In-Stock Immediately $ 349.07

8 WPW10436248 Gasket, Door (black)   (Replaces: W10436248) Special Order $ 286.97

8 W10443313 Gasket, Door (white)   (Replaces: W10571964) Special Order $ 361.01

9 W10830130 Handle, Door (black)   (Replaces: W10589563) In-Stock Immediately $ 189.54

9 W11459378 Handle, Door (stainless)   (Replaces: W10572632N) In-Stock Immediately $ 183.89

9 W10830136 Handle, Door (white)   (Replaces: W10589564) Special Order $ 196.17

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11401472 Stop, Door (grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

11 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

11 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 69.29

12 WPW10393265 Nameplate (grey)   (Replaces: W10393265) In-Stock Immediately $ 73.15

12 WPW10391355 Nameplate (white)   (Replaces: W10391355) Special Order $ 75.65

13 67001019 Retainer, Door   (Replaces: 12557905) In-Stock Immediately $ 112.90

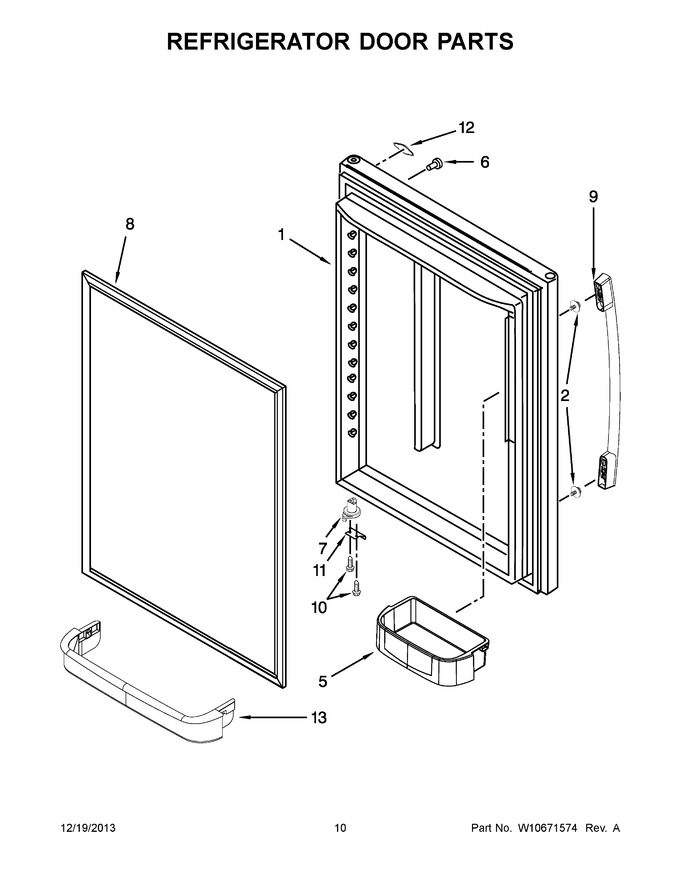

    View Diagram in Separate Window     Print Icon   Print Part List
