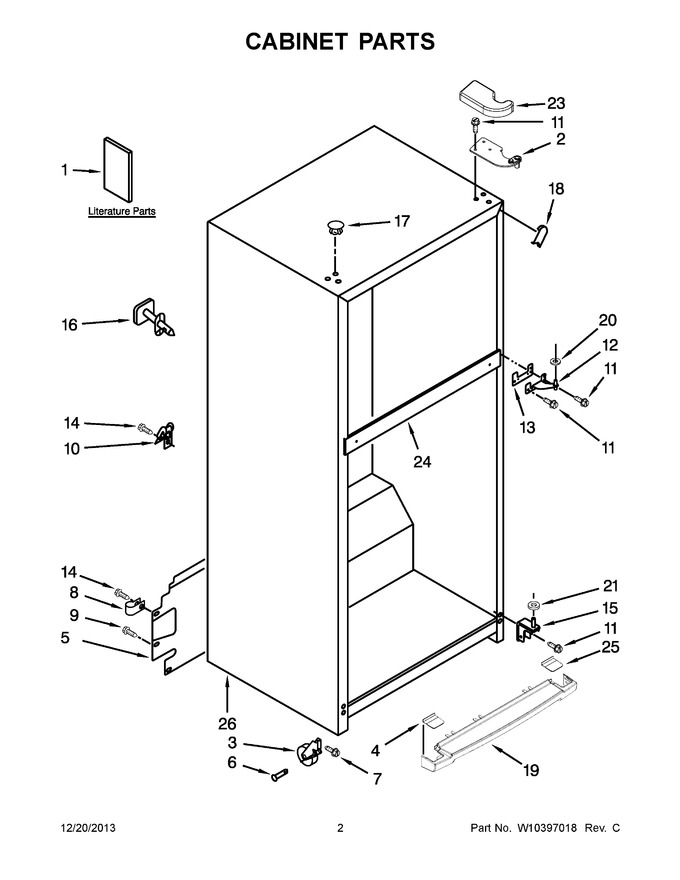

02 - Cabinet Parts
03 - Liner Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404596 | Service And Wiring Sheet |
|
- | |||||
| 1 | W10353988 | Energy Guide |
|
- | |||||
| 1 | W10551713 | Use And Care Guide |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 13.94 | |||||
| 3 | WP2166108 | Assembly, Roller (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 85.42 | |||||
| 4 | W10353930 | Cover, Toe Grille (black) |
|
$ 85.34 | |||||
| 4 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 85.50 | |||||
| 5 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 106.82 | |||||
| 6 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 7 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 8 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 14 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 15 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WP2151652 | Plug, Hole (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 17 | WPW10520307 | Plug, Hole (grey) (Replaces: 2254506) |
|
Immediately | $ 7.55 | ||||
| 17 | WP2183998 | Plug, Hole (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 18 | WPW10283959 | Filler, Corner (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 18 | W11252732 | Filler, Corner (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 18 | W10851579 | Filler, Corner (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10353939 | Grille, Toe (black) (Replaces: W10353939) |
|
$ 169.90 | |||||
| 19 | WPW10300129 | Grille, Toe (white) (Replaces: W10300129) |
|
$ 109.55 | |||||
| 19 | WPW10353941 | Grille, Toe (grey) (Replaces: W10353941) |
|
$ 153.23 | |||||
| 20 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 21 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 23 | W10331560A | Cover, Hinge Right Hand (white) (Replaces: W10331560) |
|
$ 13.44 | |||||
| 23 | W10353947A | Cover, Hinge (right Hand (grey)) (Replaces: W10353947) |
|
$ 14.28 | |||||
| 23 | W10353948A | Cover, Hinge Left Hand (black) (Replaces: W10353948) |
|
$ 15.13 | |||||
| 23 | W10353945A | Cover, Hinge Right Hand (black) (Replaces: W10353945) |
|
$ 15.13 | |||||
| 23 | W10331654 | Cover, Hinge Left Hand (white) |
|
- | |||||
| 23 | W10353950A | Cover, Hinge (left Hand (grey)) (Replaces: W10353950) |
|
$ 24.38 | |||||
| 24 | N/P | Rail, Center (not Serviced |
|
- | |||||
| 25 | W10381064 | Cover, Toe Grille (hinge Side) (grey) |
|
$ 70.38 | |||||
| 25 | W10381060 | Cover, Toe Grille (hinge Side) (black) |
|
$ 36.12 | |||||
| 25 | W10381059 | Cover, Toe Grille (hinge Side) (white) |
|
$ 87.57 | |||||
| 26 | N/P | Cabinet (not A Serviceable Part) |
|
- |
