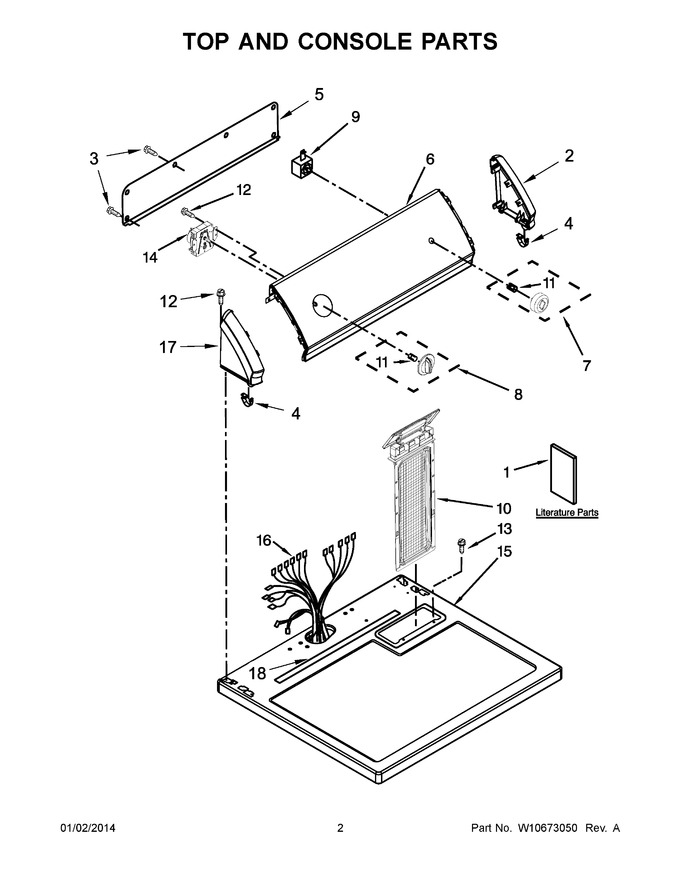

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185989		Wiring Diagram		Appelez-nous	-
1	W10514172		Installation Instructions		Appelez-nous	-
1	W10096992		Use & Care Guide		Appelez-nous	-
2	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
5	W10103406		Panel, Rear   (Replaces: 8274261)				$ 135.31
6	W10536504		Panel, Control		Appelez-nous	-
7	W10317459		Knob, Push To Start (grey)		Appelez-nous	-
8	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
9	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
10	W11778253		Lint Screen (white)   (Replaces: W10641634)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10894766		Timer, 60 Hz.   (Replaces: W10185988)			Immediately	$ 383.92
15	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
16	W10366762		Harness, Wiring		Appelez-nous	-
17	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
18	W10316616		Seal, Foam				$ 27.79
