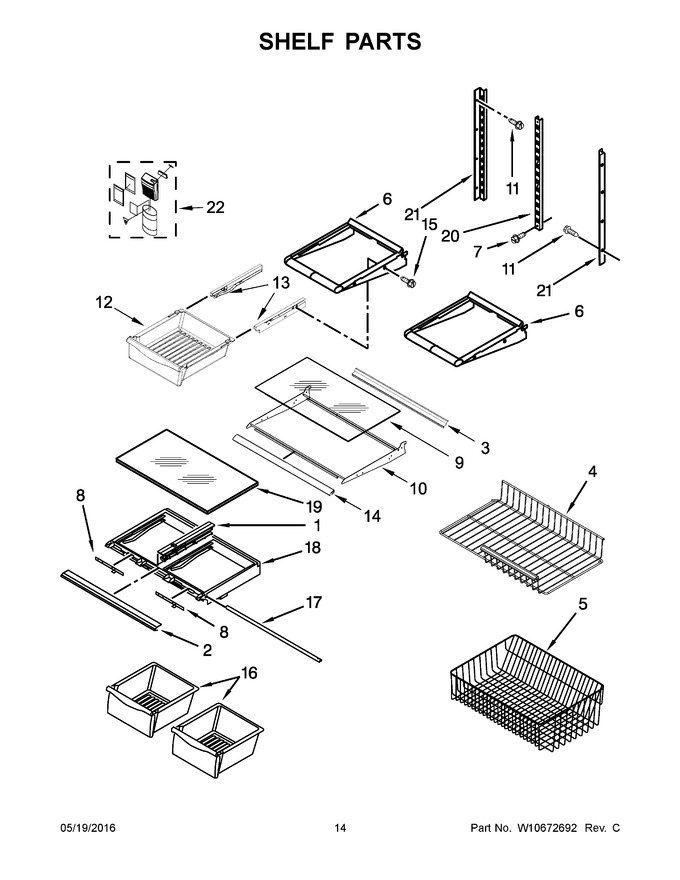

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238N) |
|
Immediately | $ 118.46 | ||||
| 2 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 117.42 | |||||
| 3 | WP10946013 | Trim, Rear Shelf (Replaces: 10946013) |
|
$ 131.84 | |||||
| 4 | 12476801 | Shelf, Stationary |
|
$ 136.27 | |||||
| 5 | WP12754803 | Basket, Freezer (lower) (Replaces: 12754803) |
|
$ 267.02 | |||||
| 6 | W11402522 | Shelf, Stationary (Replaces: 12463608V) |
|
$ 203.51 | |||||
| 7 | W10215666 | Screw |
|
$ 9.53 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | WP12204809 | Shelf, Glass (Replaces: 12204809) |
|
$ 251.22 | |||||
| 10 | W10840992 | Frame, Shelf (Replaces: 10460115) |
|
$ 226.38 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WP67001308 | Pan, Deli (Replaces: 12656504V) |
|
Immediately | $ 138.10 | ||||
| 13 | WP67001054 | Glide, Deli (left Hand) (Replaces: 12656601V) |
|
Immediately | $ 8.82 | ||||
| 14 | WPW10231329 | Trim, Front Shelf (Replaces: W10231329) |
|
$ 119.61 | |||||
| 15 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.72 | ||||
| 16 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 17 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 18 | WPW10671240 | Frame, Crisper (Replaces: W10671240) |
|
Immediately | $ 138.10 | ||||
| 19 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 209.75 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251970 | Ladder, Side |
|
$ 29.89 | |||||
| 22 | W10596756 | Assembly, Produce Preserver |
|
- | |||||
| 13A | WP67001053 | Glide, Deli (right Hand) (Replaces: 12656602V) |
|
Immediately | $ 9.24 |
