SELECT A DIAGRAM

01 - Cover Sheet

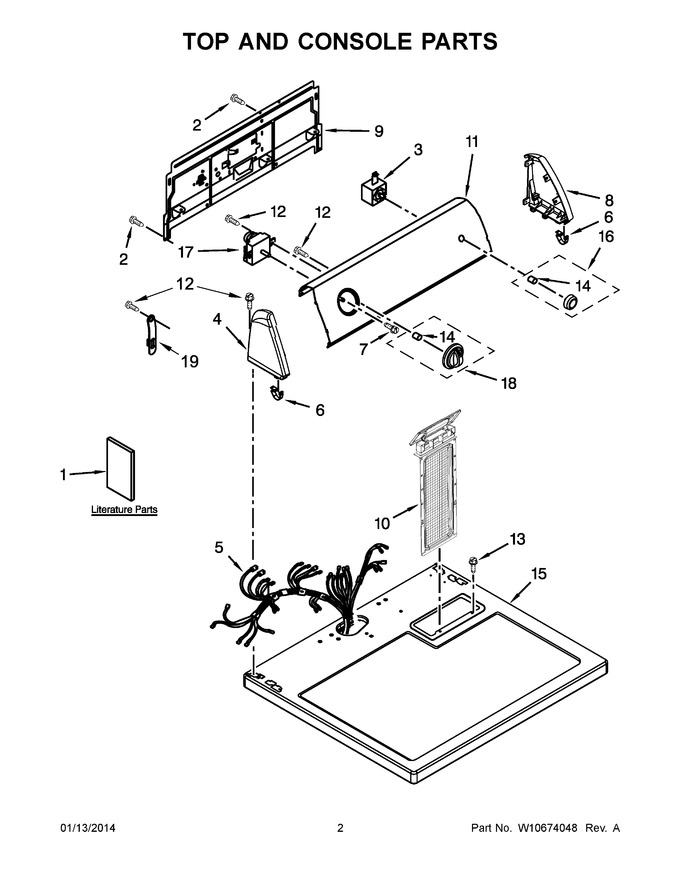

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629448		Installation Instructions		Appelez-nous	-
1	W10631594		Wiring Diagram		Appelez-nous	-
1	W10636932		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
4	WPW10251358		End Cap (left) (white)   (Replaces: W10251358)				$ 51.42
5	W10599161		Harness, Wiring		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
8	WPW10251355		End Cap (right) (white)   (Replaces: W10251355)				$ 51.39
9	W10121161		Panel, Rear Console		Appelez-nous	-
10	W10120998		Screen, Lint   (Replaces: W10596627)				$ 67.16
11	W10598021		Assembly, Panel		Appelez-nous	-
12	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
13	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	8559781		Top (white)		Appelez-nous	-
16	W10317459		Assembly, Push-to-start Knob (grey)		Appelez-nous	-
17	WP8299781		Assembly, Timer (60 Hz.)   (Replaces: 8299781)			Immediately	$ 380.55
18	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17

    View Diagram in Separate Window       Print Part List
