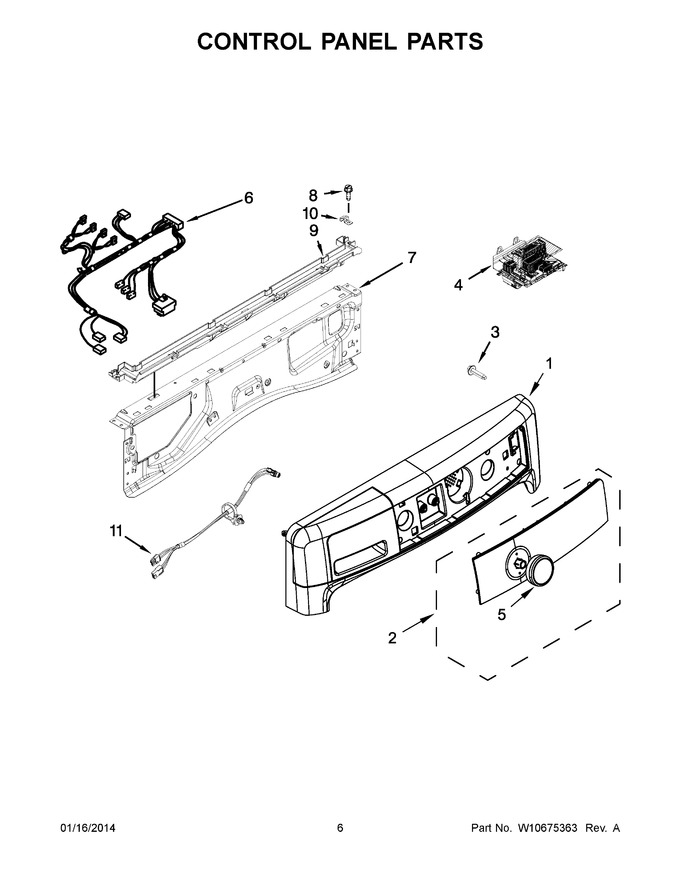

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10547983 | Assembly, Console (granite) |
|
$ 220.97 | |||||
| 1 | W10468505 | Assembly, Console (white) |
|
$ 264.77 | |||||
| 2 | W10635983 | Assembly, Iml (granite) |
|
$ 532.24 | |||||
| 2 | W10635982 | Assembly, Iml (white) |
|
$ 429.93 | |||||
| 3 | W10489172 | Screw |
|
$ 11.41 | |||||
| 4 | W10635658 | Control Unit, Appliance |
|
$ 243.43 | |||||
| 5 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 51.37 | |||||
| 6 | W11229597 | Harness, Main (upper) (Replaces: W10632341) |
|
Immediately | $ 162.31 | ||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 27.18 |
