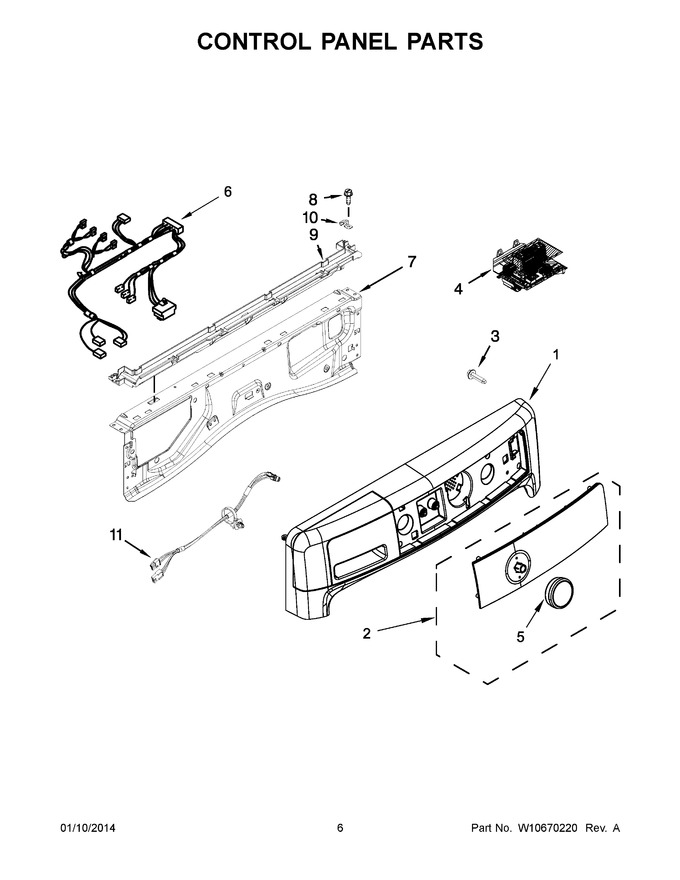

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469297 | Assembly, Console (granite) |
|
$ 251.75 | |||||
| 1 | W10469296 | Assembly, Console (white) |
|
- | |||||
| 2 | W10575707 | Assembly, Iml (granite) |
|
- | |||||
| 2 | W10575706 | Assembly, Iml (white) |
|
- | |||||
| 3 | W10489172 | Screw |
|
$ 11.41 | |||||
| 4 | WPW10692386 | Control Unit, Appliance (Replaces: W10662114) |
|
$ 325.64 | |||||
| 5 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 51.37 | |||||
| 6 | W10685628 | Harness, Main (upper) (Replaces: W10572164) |
|
$ 155.90 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | W10580186 | Harness, Ui |
|
$ 38.86 |
