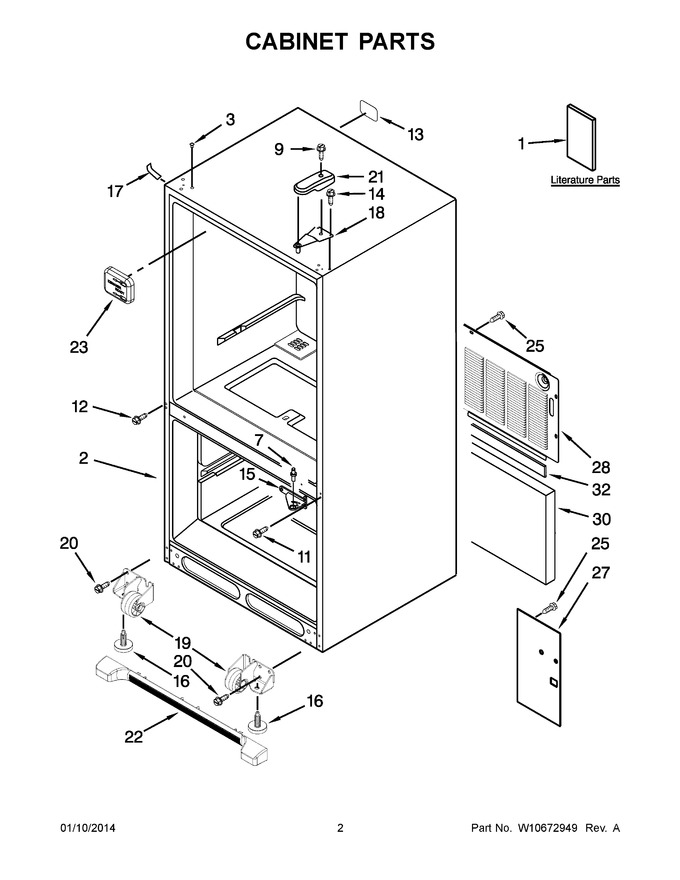

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10517966 | Tech Sheet |
|
- | |||||
| 1 | W10645660 | Energy Guide |
|
- | |||||
| 1 | W10645692 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP12246610 | Plug, Button (stainless) (Replaces: 12246610) |
|
Immediately | $ 7.76 | ||||
| 3 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 7.76 | ||||
| 3 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.06 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 15 | W11689473 | Hinge, Center (grey) (Replaces: 12607103AP) |
|
$ 66.47 | |||||
| 16 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 18 | WP12566606ED | Hinge, Top (right Hand) (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 19 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 20 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 21 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 21 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 72.21 | |||||
| 22 | WPW10534165 | Assembly, Grille (includes Clips) (grey) (Replaces: W10534165) |
|
Immediately | $ 60.90 | ||||
| 22 | WPW10534167 | Assembly, Grille (includes Clips) (black) (Replaces: W10534167) |
|
$ 91.42 | |||||
| 22 | WPW10534166 | Assembly, Grille (includes Clips) (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 23 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 8.03 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 30 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 32 | B5759655 | Gasket |
|
$ 12.41 |
