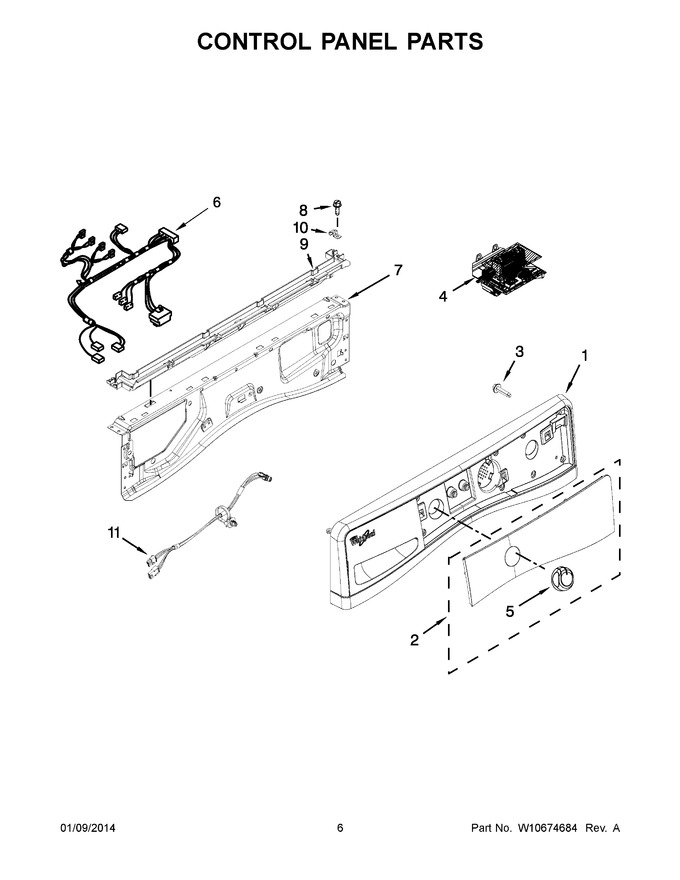

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10463529 | Assembly, Console (chrome Shadow) |
|
$ 179.28 | |||||
| 1 | W10446409 | Assembly, Console (white) |
|
$ 238.43 | |||||
| 2 | W10635641 | Assembly, Iml (chrome Shadow) |
|
- | |||||
| 2 | W10635639 | Assembly, Iml (white) |
|
- | |||||
| 3 | W10589828 | Screw |
|
$ 15.29 | |||||
| 4 | W10635848 | Control Unit, Appliance |
|
- | |||||
| 5 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 6 | W10685627 | Harness, Main (upper) (Replaces: W10632342) |
|
$ 154.51 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 |
