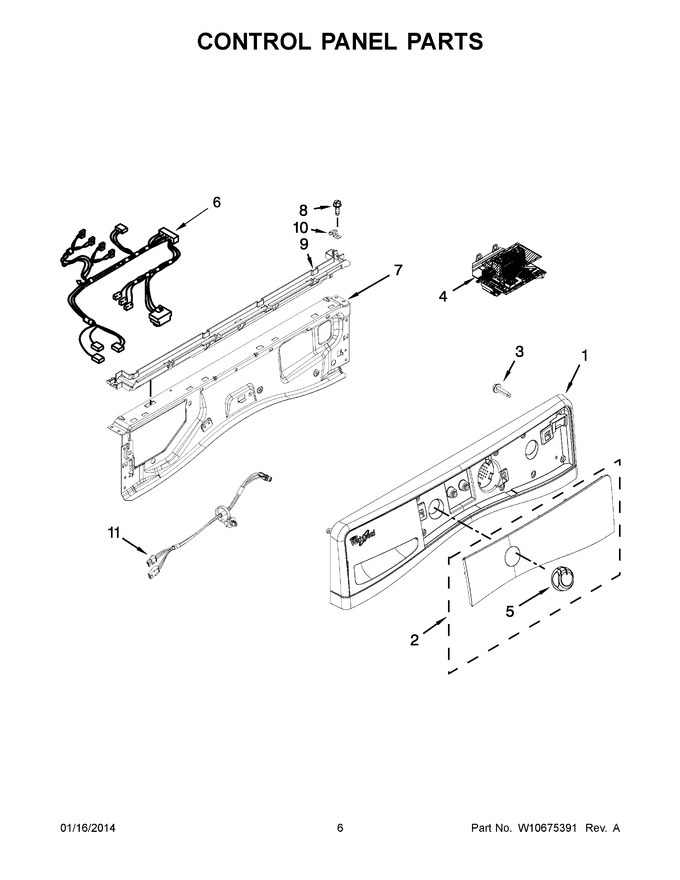

01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10463516 | Assembly, Console (chrome Shadow) (Replaces: W10463516) |
|
$ 401.88 | |||||
| 1 | W10446408 | Assembly, Console (white) |
|
$ 203.22 | |||||
| 2 | W10630507 | Assembly, Iml (chrome Shadow) |
|
$ 749.58 | |||||
| 2 | W10630506 | Assembly, Iml (white) |
|
$ 681.86 | |||||
| 3 | W10589828 | Screw |
|
$ 15.29 | |||||
| 4 | WPW10692384 | Control Unit, Appliance (Replaces: W10662112) |
|
$ 335.20 | |||||
| 5 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 6 | W10685628 | Harness, Main (upper) (Replaces: W10572164) |
|
$ 163.70 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | W10580186 | Harness, Ui |
|
$ 40.80 |
