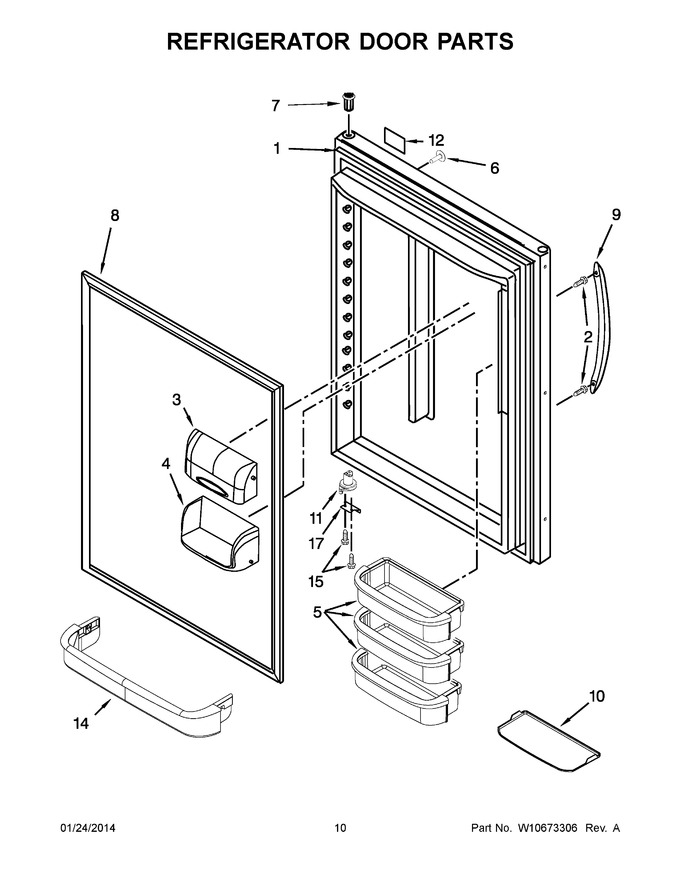

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107554SQ | Door, Refrigerator (stainless) (Replaces: 13107554S) |
|
$ 1,166.29 | |||||
| 1 | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 1,073.65 | |||||
| 1 | 13109401WQ | Door, Refrigerator (white) (Replaces: 13109401W) |
|
$ 1,073.65 | |||||
| 2 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12246610 | Plug, Button (stainless) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 6 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 6 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 7 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 7 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 7 | 10961006AP | Bushing (grey) |
|
$ 9.65 | |||||
| 8 | W10443314 | Gasket, Door (grey) (Replaces: W10571963) |
|
Immediately | $ 349.07 | ||||
| 8 | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 286.97 | |||||
| 8 | W10443313 | Gasket, Door (white) (Replaces: W10571964) |
|
$ 361.01 | |||||
| 9 | WPW10586526 | Handle, Door (stainless) (Replaces: W10586526N) |
|
$ 243.16 | |||||
| 9 | W10586525N | Handle, Door (black) |
|
- | |||||
| 9 | W10586524N | Handle, Door (white) |
|
- | |||||
| 10 | WPW10450021 | Gripper, Bucket (medium) (Replaces: W10450021) |
|
Immediately | $ 100.93 | ||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 12 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 12 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 12 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 14 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 17 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 |
