SELECT A DIAGRAM

02 - Control Panel


03 - Oven Door Lock

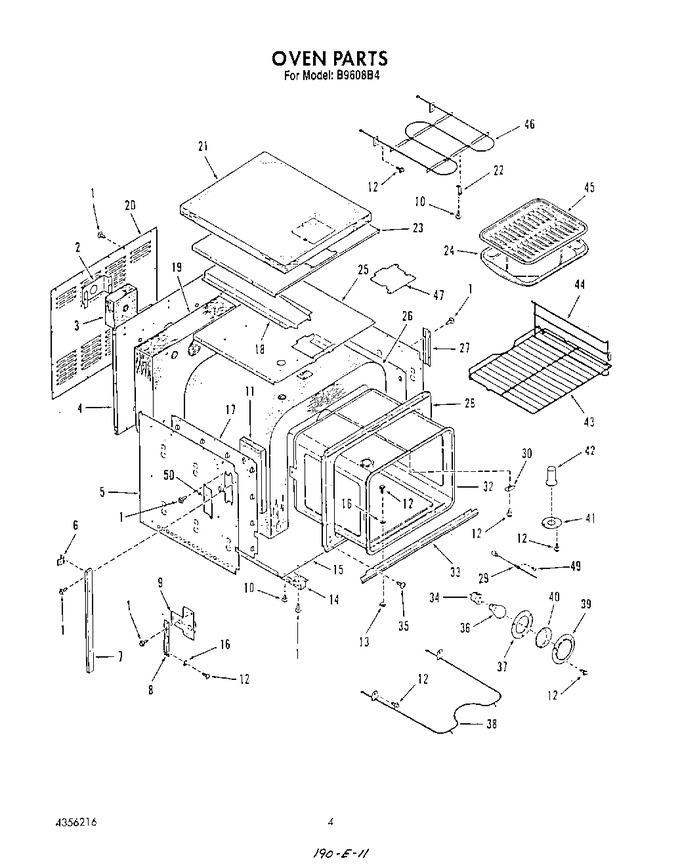

04 - Oven


05 - Cabinet Trim Filler


06 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
2	4333934		Retainer, Insul.		Appelez-nous	-
3	4353890		Insulation, Light		Appelez-nous	-
4	4337715		Back, Main		Appelez-nous	-
5	4338138		Side, Cabinet (left)		Appelez-nous	-
5	4333956		Side, Cabinet (right)		Appelez-nous	-
6	4331175		Spacer (4)		Appelez-nous	-
7	4337702		Side Trim, Lt/rt (black Model)		Appelez-nous	-
7	4342736		Side Trim, Lt/rt (white Model)		Appelez-nous	-
8	4333676		Angle, Hinge (lt/rt)		Appelez-nous	-
9	4333675		Hinge Box Assembly Lt/rt		Appelez-nous	-
10	4323394		Screw, No.10		Appelez-nous	-
11	4352036		Insulation (lt/rt)		Appelez-nous	-
12	4323776		Screw 10-32x17/32		Appelez-nous	-
13	4324012		Speed Nut No.10-32		Appelez-nous	-
14	4335505		Channel, Lt/rt		Appelez-nous	-
15	4333962		Bottom, Cabinet		Appelez-nous	-
16	4323979		Washer		Appelez-nous	-
17	4338136		Retainer, Insul.-side (lt/rt)		Appelez-nous	-
18	4338216		Vent, Oven Top		Appelez-nous	-
19	4337725		Insulation, Back And Bottom		Appelez-nous	-
20	4338214		Back, Cabinet		Appelez-nous	-
21	4354913		Insulation Cabinet Top		Appelez-nous	-
22	4334358		Support, Broiler Element		Appelez-nous	-
23	4336891		Retainer, Top Insulation		Appelez-nous	-
24	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
25	4333936		Retainer, Oven Top Insulation		Appelez-nous	-
26	4353887		Insulation, Oven Top & Sides (1 Pc)		Appelez-nous	-
27	4331687		Bracket		Appelez-nous	-
28	4338139		Frame, Front		Appelez-nous	-
29	4337170		Sensor		Appelez-nous	-
30	4329206		Cover		Appelez-nous	-
32	4337685		Oven Body		Appelez-nous	-
33	4337705		Lower Trim (black Model)		Appelez-nous	-
33	4338482		Lower Trim (white Model)		Appelez-nous	-
34	W10856866		Holder, Oven Light   (Replaces: 4323560)				$ 6.80
35	4337728		Screw No.10-32x5/8		Appelez-nous	-
36	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
37	4324481		Seal-oven Light		Appelez-nous	-
38	4337607		Element, Bake		Appelez-nous	-
39	4324482		Retainer, Lens		Appelez-nous	-
40	4324415		Lens, Oven Lamp		Appelez-nous	-
41	4335624		Clamp, Vent		Appelez-nous	-
42	4331173		Tube, Oven Vent		Appelez-nous	-
43	4331177		Oven Rack (2)		Appelez-nous	-
44	4329341		Guide-oven Rack (lt/rt)		Appelez-nous	-
45	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
46	WP4334925		Element-broil   (Replaces: 4332896)				$ 139.19
47	4336895		Cover Plate-lock		Appelez-nous	-
49	4324445		Screw		Appelez-nous	-
50	4338202		Cover Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
