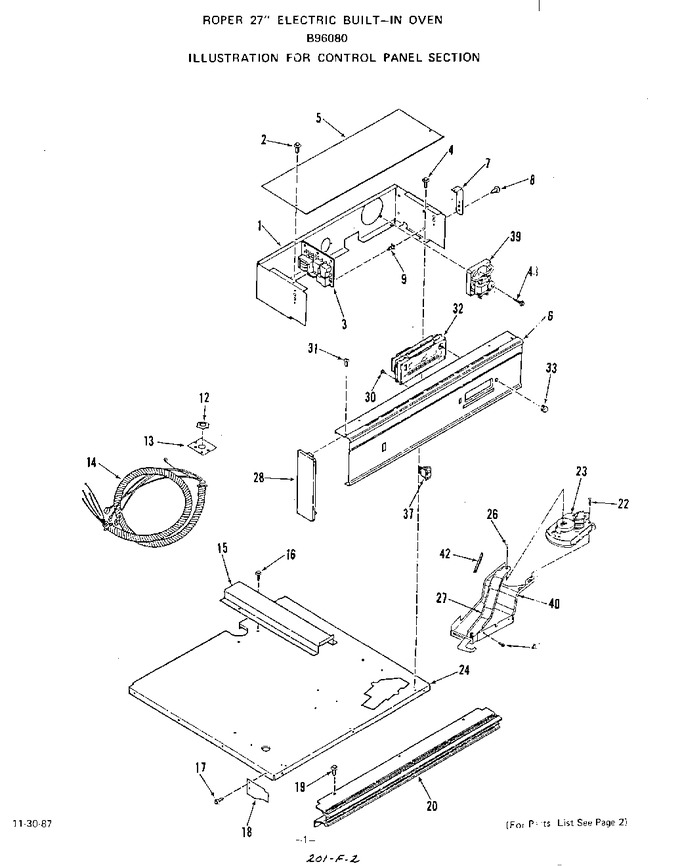

SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Cabinet Trim Filler


04 - Body


05 - Wire Harnesses And Options


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	339476		Control Housing		Appelez-nous	-
2	327320		Screw 10-16x7/16``		Appelez-nous	-
3	337672		Relay Board		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	337414		Top Cover-control Housing		Appelez-nous	-
6	336280		Model B9608bo		Appelez-nous	-
6	339699		Model B9608wo		Appelez-nous	-
7	336563		Bracket Control Panel		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
9	331469		Relay Board Spacer		Appelez-nous	-
12	110340		Nut (for Key 14)		Appelez-nous	-
13	294983		Plate (for Key 14)		Appelez-nous	-
14	336304		Harness Conduit Asm.		Appelez-nous	-
15	336780		Wire Cover		Appelez-nous	-
16	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
17	327320		Screw 10-16x7/16``		Appelez-nous	-
18	336275		Heat Shield (lt. Or Rt.)		Appelez-nous	-
19	WP112432		Screw   (Replaces: 311484)				$ 8.63
20	338934		Model B9608wo		Appelez-nous	-
20	336246		Model B9608bo		Appelez-nous	-
22	232183		Screw 8-32x3/8``		Appelez-nous	-
23	338249		Lock Motor Asm		Appelez-nous	-
24	337725		Cabinet Top		Appelez-nous	-
26	103436		Screw 8 - 32 X 3/4``		Appelez-nous	-
27	337971		Lock Lever		Appelez-nous	-
28	336512		Right (model B9608bo)		Appelez-nous	-
28	336511		Left (model B9608bo)		Appelez-nous	-
28	338935		Left (model B9608wo)		Appelez-nous	-
28	338936		Right (model B9608wo)		Appelez-nous	-
30	78153		Screw 6-32x5/16``		Appelez-nous	-
31	336529		Model B9608bo		Appelez-nous	-
31	339701		Model B9608wo		Appelez-nous	-
32	338468		Clock/oven Control W/lens		Appelez-nous	-
33	334045		Model B9608bo		Appelez-nous	-
33	339395		Model B9608wo		Appelez-nous	-
37	339394		Model B9608wo		Appelez-nous	-
37	334649		Model B9608bo		Appelez-nous	-
39	336560		Fan		Appelez-nous	-
40	336556		Door Lock Plate		Appelez-nous	-
41	316849		Screw-10-32x1/2``		Appelez-nous	-
42	337933		Spring		Appelez-nous	-
43	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
	339657		Xclock/oven Control Lens		Appelez-nous	-
