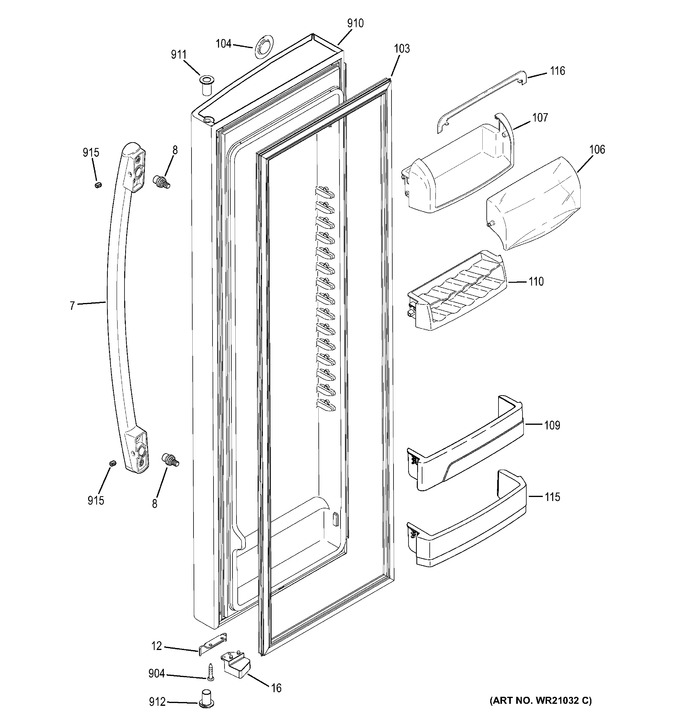

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	8911200P460		Scr 6-19 Tt Pnt15 1/4 S		Appelez-nous	-
7	WR12X10996		Handle Asm Fin		Appelez-nous	-
7	WR12X20440		Arc Handle Asm		Appelez-nous	-
8	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 39.70
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR71X10781		Door Bin Ff Adj		Appelez-nous	-
109	WR71X11034		Fixed Shelf Ff		Appelez-nous	-
110	WR71X10643		Rack Can		Appelez-nous	-
115	WR71X10858		Shelf Module Fixed Ff		Appelez-nous	-
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X12852		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
911	WR01X10233		Thimble Door Top Black		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
912	WR01X10232		Thimble Door Bot Black		Appelez-nous	-
915	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
