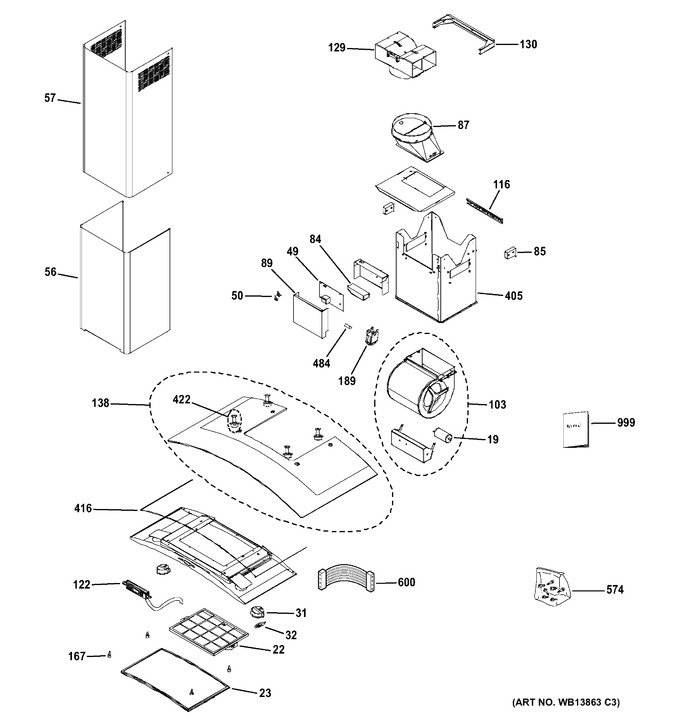

1 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	WB27X10669		Capacitor		Appelez-nous	-
22	WG01F03794		Recirc Filter Kit   (Replaces: WB02X11284)				$ 98.05
23	WB02X11270		Grease Filter		Appelez-nous	-
31	WB08X10054		Lamp Asm		Appelez-nous	-
32	WG02F00919		Lamp, Halogen 20w 12v   (Replaces: WB01X10239)			Immediately	$ 48.68
49	WB27X11124		Main Control Board Kit		Appelez-nous	-
50	WB02X11271		Board Support		Appelez-nous	-
56	WB38X10157		Bottom Chimney Section		Appelez-nous	-
57	WB38X10156		Upper Chimney Section		Appelez-nous	-
84	WG02F11353		Transformer   (Replaces: WB17X10025)				$ 209.20
85	WB02X11272		Hook With Screw And Plug		Appelez-nous	-
87	WG02F08118		Connection Piece   (Replaces: WB07X10988)				$ 121.21
89	WB07X10994		Main Pcb Cover		Appelez-nous	-
103	WB26X10199		Complete Motor		Appelez-nous	-
116	WB02X11273		Hanger30cm		Appelez-nous	-
122	WB39X10017		Complete Slider		Appelez-nous	-
129	WB07X10990		Filtring Connection		Appelez-nous	-
130	WB02X11275		Chimney Fastening Bracke		Appelez-nous	-
138	WB07X10995		Glass Canopy		Appelez-nous	-
167	WB02X11281		Grease Filter Spacer		Appelez-nous	-
189	WB24X10156		Switch		Appelez-nous	-
405	WB02X11282		Blower Housing		Appelez-nous	-
416	WB04X10031		Gasket		Appelez-nous	-
422	WB01X10330		Mounitng Screw & Bushing		Appelez-nous	-
484	WB27X10915		Fuse (main Pcb)		Appelez-nous	-
574	WB02X11274		Hardware Bag		Appelez-nous	-
600	WB18X21524		Ui Cable		Appelez-nous	-
999	49-80403		Pm Owners Manual		Appelez-nous	-
999	49-80407		Mini Manual		Appelez-nous	-
999	49-80328		Instructions Install		Appelez-nous	-
	WG02F08118		Transistion & Damper W/p				$ 121.21
	WG02F08897		Bottom Chimney Section				$ 329.31
	WG02L06340		Upper Chimney Section				$ 427.13
	WG02F02879		Main Control Power Board				$ 1,010.90
	WG02F04494		Switch, Monogram				$ 77.46

    View Diagram in Separate Window       Print Part List
