SELECT A DIAGRAM

1 - Door


2 - Cabinet & Shelves

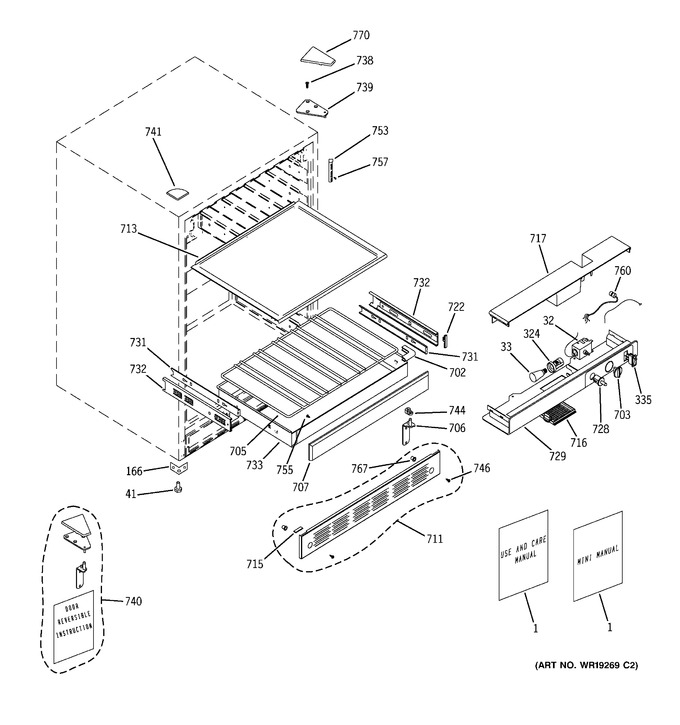

3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-5669		31-5600-99		Appelez-nous	-
1	49-60451		Use And Care Manual		Appelez-nous	-
32	WR09X10094		Control Temperature		Appelez-nous	-
33	WR23X10295		Bulb 120v 15w		Appelez-nous	-
41	WR01X10384		Leveling Leg Rear		Appelez-nous	-
166	WR02X11803		Levelling Leg Support		Appelez-nous	-
324	WR23X10376		Socket Lamp		Appelez-nous	-
335	WR23X10292		Switch		Appelez-nous	-
702	WG03L02641		Corner Piece   (Replaces: WR02X11830)				$ 63.21
703	WR02X11959		Thermostat Knob		Appelez-nous	-
705	WR71X10469		Bottle Rack - Short		Appelez-nous	-
706	WR13X10279		Hinge Support-lower		Appelez-nous	-
707	WR40X10048		Frame Front		Appelez-nous	-
711	WR79X10030		Kick Plate Ss		Appelez-nous	-
713	WR71X10470		Glass Shelf		Appelez-nous	-
715	WR02X11414		Kick Plate Front Bk		Appelez-nous	-
716	WR02X11415		Bulb Shield		Appelez-nous	-
717	WR17X11674		Control Housing Cover		Appelez-nous	-
722	WR02X11412		Guide Front		Appelez-nous	-
728	WG02F04509		Switch Spdt High Amp   (Replaces: WB24T10147)				$ 30.18
729	WR17X12158		Control Housing		Appelez-nous	-
731	WR72X10123		Frame Guide Short Slid		Appelez-nous	-
732	WR17X11394		Inner-liner Guide Short		Appelez-nous	-
733	WR72X10121		Bottle Shelf Frame		Appelez-nous	-
738	WR01X10491		Upper Hinge Screw		Appelez-nous	-
739	WR13X10276		Upper Hinge Right		Appelez-nous	-
740	WG03L01828		Reverse Door Hinge Kit   (Replaces: WR13X10275)				$ 182.70
741	WR13X10278		Hinge Cover		Appelez-nous	-
744	WR02X11964		Cam Riser		Appelez-nous	-
746	WR01X10643		Kick Plate Screw - Stain		Appelez-nous	-
753	WR02X11410		Temp.control Bulb Cover		Appelez-nous	-
755	WR01X10526		Screw (frame Front)		Appelez-nous	-
757	WR01X10470		Screw Bulb Cover		Appelez-nous	-
760	WR23X10410		Harness Temp Contr		Appelez-nous	-
767	WR02X11485		Kick Plate Spacer		Appelez-nous	-
770	WR02X11486		Cover Hinge Support Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
