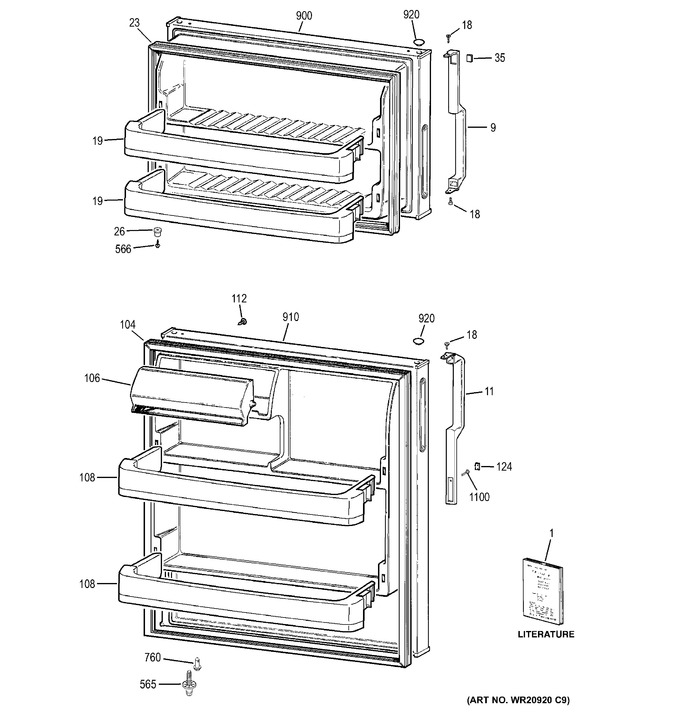

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Cabinet
3 - Machine Compartment
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51837 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60691 | Pm Guide Owners |
|
- | |||||
| 9 | WR12X10453 | Handle Door Assy Fz Bisq |
|
- | |||||
| 11 | WR12X10454 | Handle Door Ff Bisque |
|
- | |||||
| 18 | WR1X1726 | Scr 10-16 Ab 3/4 Ss |
|
- | |||||
| 19 | WG03F01622 | Shelf Fixed Fz (Replaces: WR17X11890) |
|
Immediately | $ 50.92 | ||||
| 23 | WG03L00640 | Gasket Door Fz (Replaces: WR24X10228) |
|
Immediately | $ 152.19 | ||||
| 26 | WR02X13134 | Stop Door |
|
- | |||||
| 35 | WR02X10708 | Lens Nameplate |
|
- | |||||
| 104 | WG03F00914 | Gasket Door Ff (Replaces: WR24X10231) |
|
Immediately | $ 155.77 | ||||
| 106 | WG03L00757 | Door Dairy (Replaces: WR22X476) |
|
$ 109.16 | |||||
| 108 | WR17X12916 | Shelf Fixed Ff |
|
- | |||||
| 112 | WR01A00517 | Beauty Button-wht (Replaces: WR2X8693) |
|
$ 4.37 | |||||
| 124 | WR12X10452 | Plug Button Insert |
|
- | |||||
| 565 | WG03A00419 | Scr 12-24 Gx Hxw .750 (Replaces: WR01X10950) |
|
$ 29.41 | |||||
| 566 | WR01X10898 | Scr 12-24 Gx Bht20 .900 |
|
- | |||||
| 760 | WR01X10641 | Scr 10-32 Gx Hxw 9/16 S |
|
- | |||||
| 900 | WR78X12402 | Door Asm Foam Fz Bq |
|
- | |||||
| 910 | WR78X12395 | Door Asm Foam Ff Bq |
|
- | |||||
| 920 | WR02X10850 | Plug Button Thimble Bisq |
|
- | |||||
| 1100 | WR01X10590 | Scr 10-16 Ab Pnt20 1/2 S |
|
- |
