01 - Cooktop Parts
02 - Backguard Parts

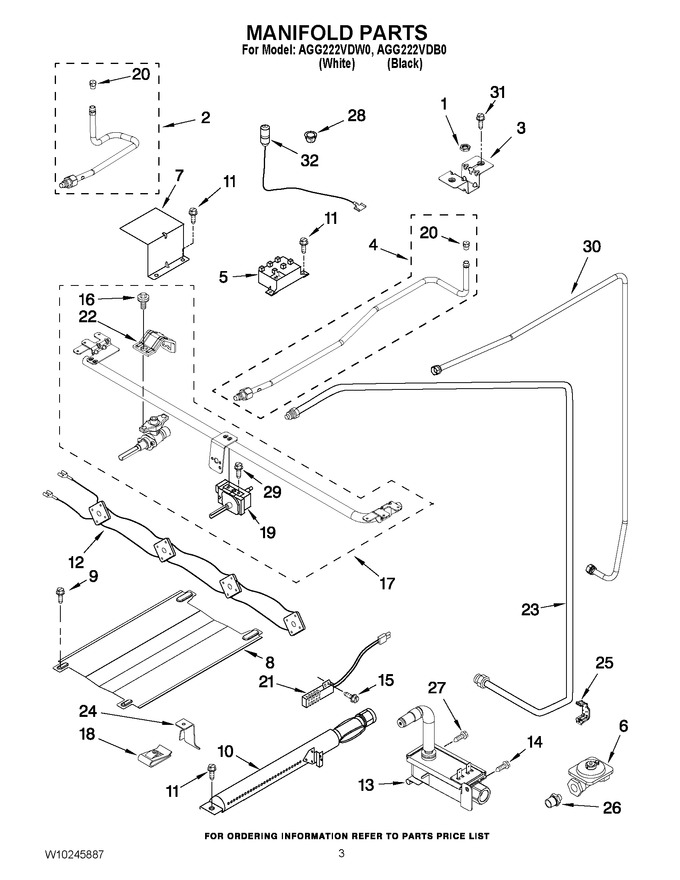

03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Oven Door And Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98017323 | Nut |
|
- | |||||
| 2 | WP98017582 | Venturi, Front (Replaces: 98017582) |
|
$ 160.01 | |||||
| 3 | W11715913 | Brkt., Venturi (Replaces: W10122103) |
|
- | |||||
| 4 | WP98017359 | Venturi, Rear (Replaces: 98017359) |
|
$ 174.91 | |||||
| 5 | W11590249 | Spark Module (Replaces: 6610341) |
|
$ 22.06 | |||||
| 6 | W10177394 | Regulator |
|
$ 286.35 | |||||
| 7 | 98010823 | Cover, Module |
|
- | |||||
| 8 | W10212101 | Spreader, Flame |
|
$ 71.63 | |||||
| 9 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 13.25 | ||||
| 10 | WP98012138 | Burner, Oven (Replaces: 98012138) |
|
$ 210.98 | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.47 | |||||
| 12 | W10361496 | Harness, Switch (Replaces: W10173884) |
|
- | |||||
| 13 | WPW10205816 | Valve, Oven (Replaces: W10205816) |
|
$ 341.44 | |||||
| 14 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.47 | |||||
| 15 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 16 | WP3400882 | Bolt, Valve Mtg (Replaces: 98005663) |
|
Immediately | $ 6.80 | ||||
| 17 | W10180270 | Assembly, Manifold |
|
- | |||||
| 18 | 98009179 | U-nut |
|
$ 12.63 | |||||
| 19 | WPW10641988 | Thermostat (Replaces: W10159016) |
|
$ 106.17 | |||||
| 20 | WP98017348 | Orifice (Replaces: 98017348) |
|
$ 82.79 | |||||
| 21 | W10918546 | Igniter, Oven Oven Pilot) (Replaces: 98005652) |
|
Immediately | $ 63.63 | ||||
| 22 | W10177394 | Bracket, Valve (Replaces: W10180267) |
|
$ 286.35 | |||||
| 23 | W10177392 | Tubing (regltr To Oven Valve) |
|
- | |||||
| 24 | 98013314 | Locator, Burner |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | 98007431 | Fitting 3/8-9/16 |
|
$ 116.11 | |||||
| 27 | 98013634 | Screw |
|
- | |||||
| 28 | WPW10278150 | Clip, Igniter (Replaces: 98015032) |
|
$ 40.61 | |||||
| 29 | WP3400882 | Bolt, T-stat Mtg (Replaces: 98005663) |
|
Immediately | $ 6.80 | ||||
| 30 | WP98017171 | Tubing, Inlet (Replaces: 98017171) |
|
$ 244.77 | |||||
| 31 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.47 | |||||
| 32 | WPW10209656 | Igniter, Top (rf, Rr & Lf) (Replaces: W10209656) |
|
Immediately | $ 76.73 | ||||
| 32 | WPW10209657 | Igniter, Top (lr) (Replaces: W10209657) |
|
$ 50.99 | |||||
| NI | W11672513 | Lp Spud Kit (for Use With Lp) (Replaces: W10207842) |
|
$ 20.12 |
