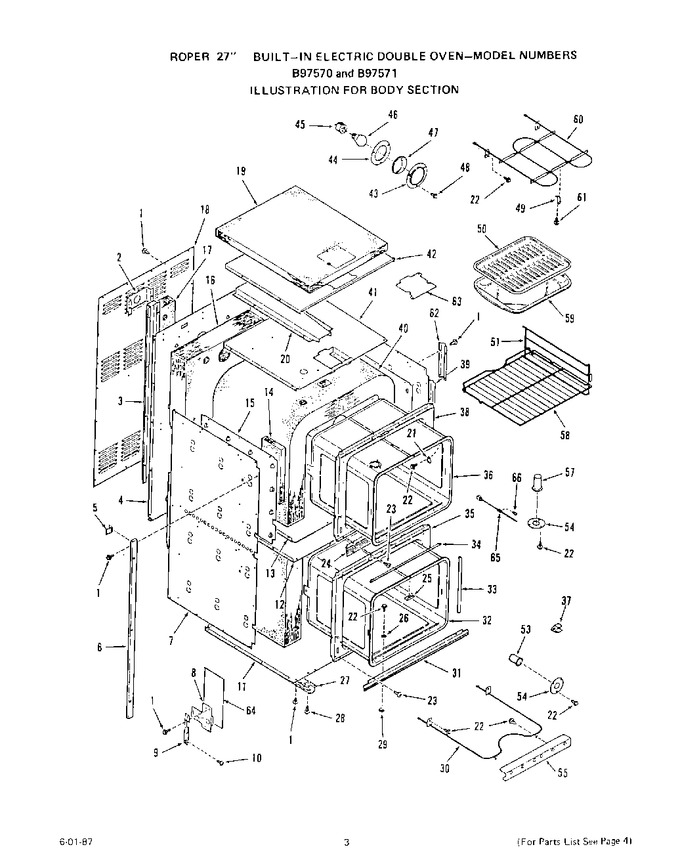

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
2	323630		Insulation Retainer-oven Light		Appelez-nous	-
3	323638		Rear Oven Vent Box		Appelez-nous	-
4	336260		Main Back		Appelez-nous	-
5	311726		Spacer (6 Req)		Appelez-nous	-
6	336239		Side Trim (lt. Or Rt.)		Appelez-nous	-
7	325527		Left		Appelez-nous	-
7	325528		Right		Appelez-nous	-
8	322609		Hinge Box Asm. Lt Or Rt		Appelez-nous	-
9	322611		Hinge Angle-lt Or Rt (up & Lo Ov)		Appelez-nous	-
10	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
11	323624		Cabinet Bottom		Appelez-nous	-
12	327391		Insulation Retainer-ov. Top (lo)		Appelez-nous	-
13	323632		Insulation Retainer-ov. Btm (up)		Appelez-nous	-
14	279470		Insulation (lt. Or Rt.)		Appelez-nous	-
15	337729		Insulation Retainer-body Side		Appelez-nous	-
16	336287		Insulation-oven Back & Bottom		Appelez-nous	-
17	WP660579		Insulation-oven Light (up & Lo)   (Replaces: 311715)				$ 164.26
18	323661		Cabinet Back		Appelez-nous	-
19	336580		Insulation-cabinet Top		Appelez-nous	-
20	337944		Vent Box-oven Top		Appelez-nous	-
21	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
22	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
23	336296		Screw		Appelez-nous	-
24	336241		Center Front Trim		Appelez-nous	-
25	304835		Cover (lo. & Up. Ov)		Appelez-nous	-
26	21067		Washer (up. & Lo. Oven)		Appelez-nous	-
27	328042		Bottom Channel-lt. Or Rt.		Appelez-nous	-
28	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
29	108069		Speed Nut 10 - 32		Appelez-nous	-
30	WG02F05449		Upper Oven   (Replaces: 335914)				$ 84.06
30	331164		Lower Oven		Appelez-nous	-
31	336242		Lower Front Trim		Appelez-nous	-
32	331655		Lower Oven Body		Appelez-nous	-
33	313059		Lower Oven Seal-sides		Appelez-nous	-
34	313055		Lower Oven Seal - Top		Appelez-nous	-
35	331669		Front Frame		Appelez-nous	-
36	336186		Upper Oven Body		Appelez-nous	-
37	321539		Thermostat Bulb Retainer Clip		Appelez-nous	-
38	337735		Upper Front Frame		Appelez-nous	-
39	323724		Raceway		Appelez-nous	-
40	311712		Insulation-oven Top & Sides		Appelez-nous	-
41	336569		Insulation Retainer-up. Oven Top		Appelez-nous	-
42	337727		Insulation Retainer-cabinet Top		Appelez-nous	-
43	229372		Lens Retainer-oven Light (up. Oven)		Appelez-nous	-
44	229371		Gasket-oven Light Lens-up. Oven		Appelez-nous	-
45	87883		Oven Light Bulb Holder		Appelez-nous	-
46	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
47	114989		Oven Light Lens (up. Oven)		Appelez-nous	-
48	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
49	324809		Broiler Element Support-up. Oven		Appelez-nous	-
50	326297		Broiler Pan Grid		Appelez-nous	-
51	305350		Oven Rack Guide		Appelez-nous	-
53	294679		Oven Vent Tube-lo. Oven		Appelez-nous	-
54	328303		Oven Vent Clamp		Appelez-nous	-
55	331670		Shield-element-lo. Oven		Appelez-nous	-
57	WP660579		Oven Vent Tube-up Oven   (Replaces: 311716)				$ 164.26
58	311735		Oven Rack -4 Each Req.		Appelez-nous	-
59	331592		Broiler Pan		Appelez-nous	-
60	ET342		Broiler Element-up Oven   (Replaces: 319526)				$ 49.95
61	69605		Screw 10abx3/8``		Appelez-nous	-
62	323665		Raceway		Appelez-nous	-
63	237762		Cover Plate		Appelez-nous	-
64	114300		Insulation Cover		Appelez-nous	-
65	12001656		Sensor   (Replaces: 334300)			Immediately	$ 50.14
66	336152		Screw		Appelez-nous	-
