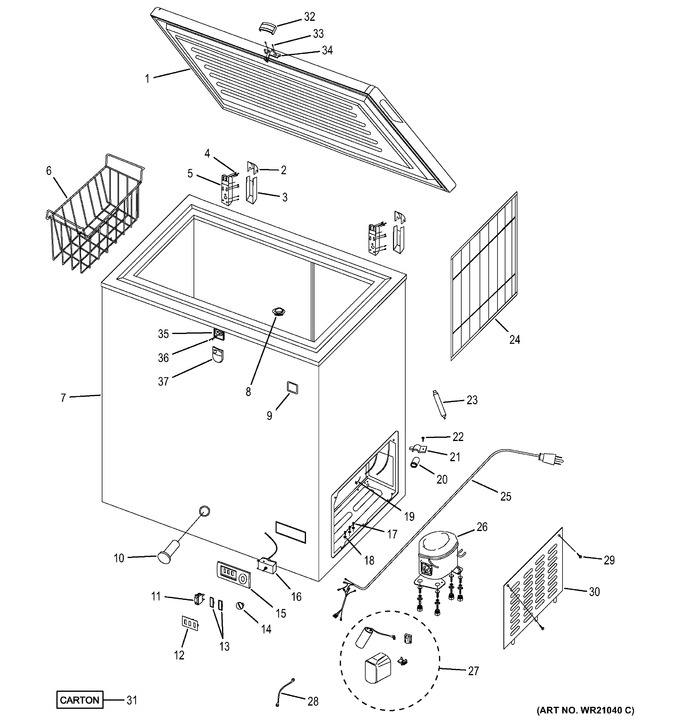

1 - Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR90X00044 | Door |
|
- | |||||
| 2 | WR13X10969 | Hinge, Top Cover |
|
- | |||||
| 3 | WR13X10970 | Hinge, Bottom Cover |
|
- | |||||
| 3 | WR02X12047 | Logo |
|
- | |||||
| 4 | WR02X12189 | Drain Stopper |
|
- | |||||
| 4 | WR01X10743 | Screw |
|
- | |||||
| 5 | WR02X12044 | Drain Plug |
|
- | |||||
| 5 | WR13X10971 | Hinge |
|
$ 18.84 | |||||
| 7 | WR21X10208 | Basket |
|
$ 33.39 | |||||
| 7 | WR02X12190 | Thermostat Knob |
|
- | |||||
| 8 | WR02X12191 | Cover Board |
|
- | |||||
| 10 | WR02X12048 | Light Cover |
|
- | |||||
| 17 | WG03F00745 | Thermostat (Replaces: WR50X10085) |
|
$ 56.10 | |||||
| 18 | WR01X11001 | Screw |
|
- | |||||
| 22 | WR01X10744 | Toothed Washer |
|
- | |||||
| 23 | WR01X10745 | Power Cord Fix Belt |
|
- | |||||
| 24 | WR01X10487 | Screw |
|
- | |||||
| 26 | WR86X10051 | Compressor |
|
- | |||||
| 27 | WR01X10746 | Screw |
|
- | |||||
| 28 | WR01X10747 | Power Cord Clamp |
|
- | |||||
| 31 | WR07X10139 | Ptc&olp |
|
- | |||||
| 32 | WG03F02173 | Green Light (Replaces: WR02X12046) |
|
$ 17.15 | |||||
| 32 | WR62X10090 | Run Capacitor |
|
- | |||||
| 37 | WR05X10022 | Lock Asm And Key |
|
- |
