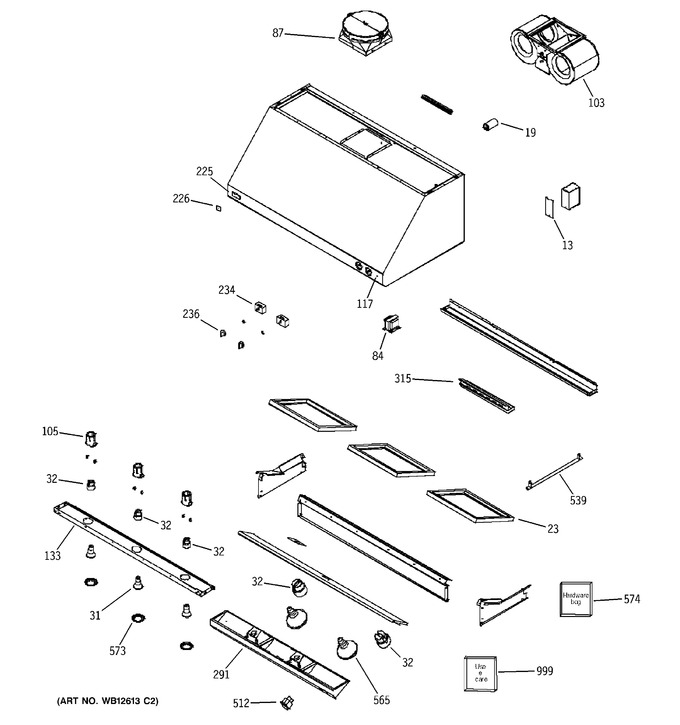

SELECT A DIAGRAM

1 - Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	WB02X10872		Junction Box Cover		Appelez-nous	-
19	WB27X10669		Capacitor		Appelez-nous	-
23	WG02F00522		Filter, Baffle (qty 1)   (Replaces: WB02X10877)				$ 283.49
31	WG02L09574		120v 50w Halogen Bulb   (Replaces: WB08X10028)				$ 66.14
32	WG02F00854		Lampholder   (Replaces: WB08X10030)				$ 71.00
84	WB26X21429		Transformer Kit		Appelez-nous	-
87	WG02F12417		Duct Transition W/damper   (Replaces: WB02X10871)				$ 712.00
103	WG02F11862		Blower Hood Asm   (Replaces: WB38X10070)				$ 2,678.87
105	WB08X10032		Lampholder Support		Appelez-nous	-
117	WB08X10033		Indicator Light		Appelez-nous	-
133	WB07X10611		Halogen Lamp Panel 48"		Appelez-nous	-
225	WB02X10832		Monogram Logo		Appelez-nous	-
226	WB01X10070		Clip Logo		Appelez-nous	-
234	WB24X10110		Switch, Motor/lamp		Appelez-nous	-
236	WG04L00422		Knob Assembly   (Replaces: WB03X10163)				$ 59.78
236	WG02L00400		Knob Assembly, Zinc Die   (Replaces: WB03X10261)				$ 156.86
291	WB07X10612		Heat Lamp Panel 48"		Appelez-nous	-
315	WB02X10878		Grease Tray 48"		Appelez-nous	-
512	WB24X10111		Heat-lamp Rocker Switch		Appelez-nous	-
539	WB02X10876		Utensil Rod-taper		Appelez-nous	-
565	WB08X10029		120v 175w Infrared Lamp		Appelez-nous	-
573	WB08X10031		Bezel Lamp		Appelez-nous	-
574	WB01X10196		Hardware Bag		Appelez-nous	-
999	49-80151		Pm Install Instructions		Appelez-nous	-
999	49-80150		Use & Care Manual		Appelez-nous	-
	WG02F00003		Lamp Infrared				$ 98.42
	WG02F01566		Switch Motor Lamp				$ 155.79
	WG02L04331		Lamp Panel		Appelez-nous	-
	WG02A01434		Transformer Kit				$ 176.97

    View Diagram in Separate Window       Print Part List
