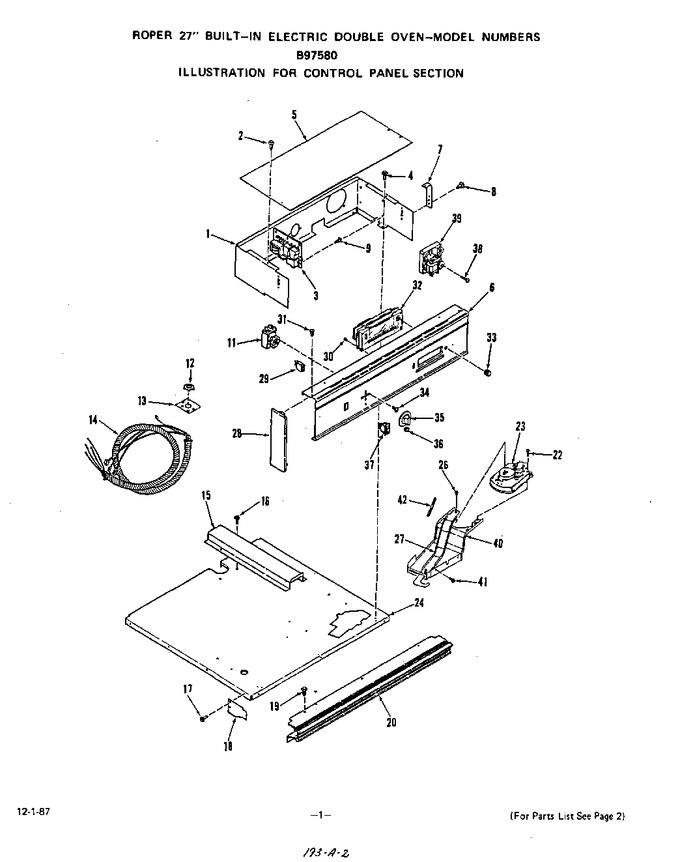

02 - Control Panel


03 - Cabinet Trim Filler


04 - Body


05 - Upper Oven Door


06 - Lower Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	339476		Control Housing		Appelez-nous	-
2	327320		Screw 10-16x7/16``		Appelez-nous	-
3	337672		Relay Circuit Board		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	337414		Top Cover-control Housing		Appelez-nous	-
6	336281		Control Panel		Appelez-nous	-
7	336563		Control Panel Bracket		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
9	331469		Spacer Pcb		Appelez-nous	-
11	320938		Thermostat		Appelez-nous	-
12	110340		Nut (for Key 14)		Appelez-nous	-
13	294983		Plate (for Key 14)		Appelez-nous	-
14	336305		Harness Conduit Asm.		Appelez-nous	-
15	336780		Wire Cover		Appelez-nous	-
16	327320		Screw 10-16x7/16``		Appelez-nous	-
17	327320		Screw 10-16x7/16``		Appelez-nous	-
18	336275		Heat Shield (lt. Or Rt.)		Appelez-nous	-
19	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
20	338934		Control Panel Trim		Appelez-nous	-
22	232183		Screw 8-32x3/8``		Appelez-nous	-
23	338249		Lock Motor Asm		Appelez-nous	-
24	337725		Cabinet Top		Appelez-nous	-
26	103436		Screw 8 - 32 X 3/4``		Appelez-nous	-
27	337971		Lock Lever		Appelez-nous	-
28	336512		End Cap (right)		Appelez-nous	-
28	336511		End Cap (left)		Appelez-nous	-
29	331717		Indicator Light		Appelez-nous	-
30	78153		Screw 6-32x5/16``		Appelez-nous	-
31	336529		Screw		Appelez-nous	-
32	338468		Clock/oven Control W/lens		Appelez-nous	-
33	334045		Clock Knob		Appelez-nous	-
34	78565		Screw 8-32x3/16``		Appelez-nous	-
35	336288		Thermostat Knob		Appelez-nous	-
36	331705		Lens-indicator Light		Appelez-nous	-
37	339394		Switch		Appelez-nous	-
38	105771		Screw		Appelez-nous	-
39	336560		Fan Asm		Appelez-nous	-
40	336556		Door Lock Plate		Appelez-nous	-
41	316849		Screw-10-32x1/2``		Appelez-nous	-
42	337514		Main		Appelez-nous	-
42	336313		Relay		Appelez-nous	-
42	338282		Sensor Limiter		Appelez-nous	-
42	337933		Spring Lock		Appelez-nous	-
42	336960		Sensor		Appelez-nous	-
42	336559		Lock		Appelez-nous	-
	337844		Xinstallation Guide		Appelez-nous	-
	338973		Xuse & Care Manual		Appelez-nous	-
	339038		Xrepair Parts List		Appelez-nous	-
	339657		Xclock/oven Control Lens		Appelez-nous	-
