SELECT A DIAGRAM

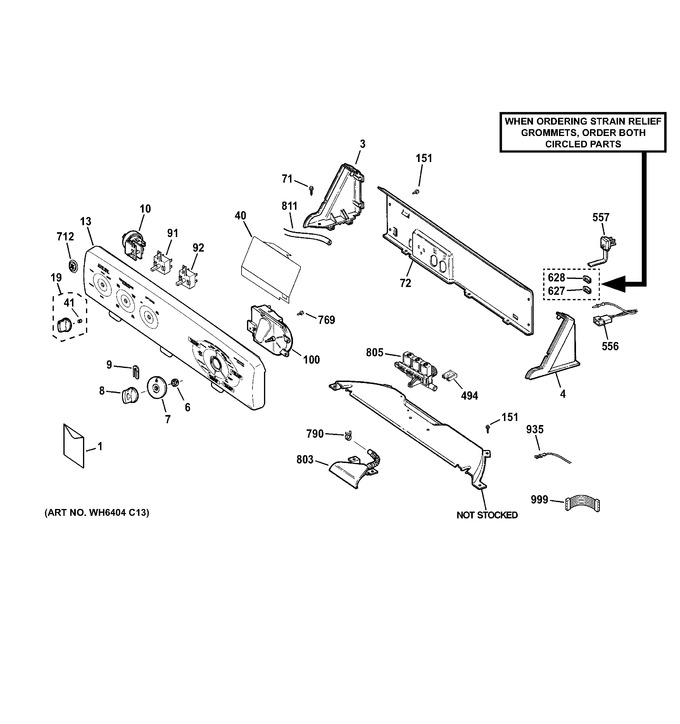

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 1 | 31-16844 | Pm Mini Manual |
|
- | |||||
| 1 | 49-90449 | Pm Manual U&c |
|
- | |||||
| 3 | WH42X22575 | Endcap Washer Lh |
|
- | |||||
| 4 | WH42X22576 | Endcap Washer Rh |
|
- | |||||
| 6 | WG04F03746 | Ring Compression (Replaces: WH02X10093) |
|
$ 3.97 | |||||
| 7 | WG04A00753 | Dial Asm (Replaces: WH11X10049) |
|
Immediately | $ 22.23 | ||||
| 8 | WG04F03734 | Knob Asm Control (Replaces: WH01X10310) |
|
Immediately | $ 19.06 | ||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WG04F03677 | Switch Pressure (Replaces: WH12X10479) |
|
Immediately | $ 88.99 | ||||
| 13 | WH42X20481 | Backsplash Asm |
|
- | |||||
| 19 | WE01X20432 | Knob And Clip Asm |
|
- | |||||
| 40 | WH02X10354 | Shield Timer |
|
- | |||||
| 41 | WH01X10106 | Clip Knob |
|
- | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X10146 | Back Panel |
|
- | |||||
| 91 | WG04F03769 | Switch Rotary (Replaces: WH12X10498) |
|
Immediately | $ 47.74 | ||||
| 92 | WG04F04870 | Fabric Softener Switch (Replaces: WH12X10477) |
|
Immediately | $ 42.88 | ||||
| 100 | WG04F04276 | Timer Washer (Replaces: WH12X10527) |
|
Immediately | $ 185.19 | ||||
| 151 | WH02X10126 | Screw 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 494 | WD21X10257 | Term Hsng - W/valve |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WG04F04596 | Cord Power Asm (Replaces: WH19X10068) |
|
$ 59.78 | |||||
| 627 | WH12X10208 | Self Locking Strain Relf |
|
- | |||||
| 628 | WH12X22694 | Strain Relief |
|
- | |||||
| 712 | WH01X10648 | Badge |
|
- | |||||
| 769 | WR01X10619 | Scr 10-18 Hi/lo Hxw 1/2 |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WG04F03731 | Hose & Water Inlet (Replaces: WH41X10077) |
|
Immediately | $ 12.71 | ||||
| 805 | WG04F09765 | Valve Triple Water (Replaces: WH13X10048) |
|
Immediately | $ 145.93 | ||||
| 811 | WG04F03638 | Hose Pres Sw (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 935 | WD1X1434 | Terminal Special |
|
- | |||||
| 999 | WH19X10104 | Harness Washer |
|
- |
