View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Body Parts
4 - Warming Drawer
5 - Door
6 - Door Lock
7 - Convection Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

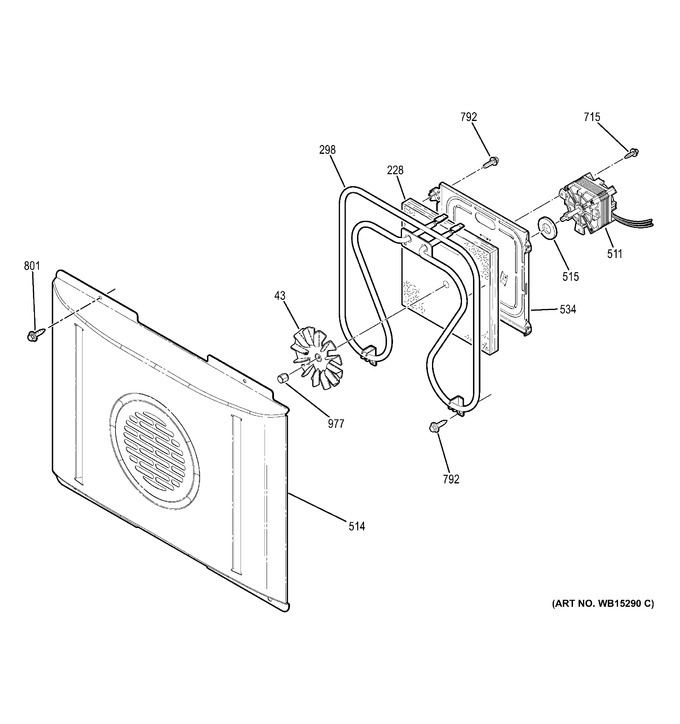

| 43 | WG02F00731 | Hub Blade Asm (Replaces: WB02T10289) |
|
Immediately | $ 36.53 | ||||
| 228 | WB35X21495 | Insulation Conv |
|
- | |||||
| 298 | WG02F16499 | Element Convx Asm (Replaces: WB44T10086) |
|
$ 58.52 | |||||
| 511 | WG02F01134 | Motor Psc Conv (Replaces: WB26T10043) |
|
$ 169.32 | |||||
| 514 | WB34X20082 | Cover Fan Convx (bk) |
|
- | |||||
| 515 | WB04T10080 | Gasket Conv Fan |
|
- | |||||
| 534 | WB02X21496 | Bracket Conv Fan |
|
- | |||||
| 715 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 792 | WB01T10072 | Scr 10-16 Ab Ihw .625 Ni |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 801 | WB01X21497 | Scr 10-16 Ab Trt20 1/2 B |
|
- | |||||
| 977 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 9.50 | ||||
| WG02L03895 | Contre-porte Asm.(noir) |
|
$ 117.82 | ||||||
| WG02L02689 | Enjoliveur Et Deflecteur Asm. |
|
$ 210.04 | ||||||
| WG02L02532 | Enjoliveur Asm., Controles Et Joint |
|
$ 199.72 | ||||||
| WG02L02462 | Cadre Et Support Du Tiroir Asm |
|
$ 148.84 | ||||||
| WG02L02305 | Grille Du Four |
|
$ 134.42 | ||||||
| WG02L02119 | Charniﾃ#re Asm |
|
$ 120.80 | ||||||
| WG02F11429 | Induction Asm |
|
$ 1,373.81 | ||||||
| WG02F08959 | Drawer Front Inner |
|
- | ||||||
| WG02F11429 | Generator Module (Replaces: WG02F08501) |
|
$ 1,373.81 | ||||||
| WG02F08464 | Module D''induction Asm. |
|
$ 256.58 | ||||||
| WG02F08407 | Blower Centrifugal 12v |
|
$ 146.24 | ||||||
| WG02F08377 | Lamp Halogen Asm |
|
$ 88.46 | ||||||
| WG02F07591 | Panneau |
|
$ 117.20 | ||||||
| WG02F07567 | Shield Broil Asm |
|
$ 112.10 | ||||||
| WG02F07439 | Element Induction 1800w |
|
$ 125.10 | ||||||
| WG02F15068 | Element Induction 3700w (Replaces: WG02F07438) |
|
$ 195.52 | ||||||
| WG02F07306 | Commande Asm. |
|
Immediately | $ 617.55 | |||||
| WG02F06895 | Ens Tableau De Controle, Verre |
|
$ 1,974.00 | ||||||
| WG02F06893 | Tableau Filtre |
|
$ 278.82 | ||||||
| WG02F11571 | Tableau Generateur Asm. (Replaces: WG02F06892) |
|
$ 396.49 | ||||||
| WG02F06891 | Board Pcb Asm |
|
$ 259.64 | ||||||
| WS01L01914 | Glissiﾃ#re Asm G. |
|
$ 50.42 | ||||||
| WG02F06690 | Cablage |
|
$ 74.34 | ||||||
| WG02F06606 | Latch Motorized |
|
$ 103.25 | ||||||
| WG03F09634 | High Limit Switch Ovn Bk (Replaces: WG02F06513) |
|
Immediately | $ 43.43 | |||||
| WG02F05721 | Thermistance |
|
Immediately | $ 70.95 | |||||
| WG02F04509 | Switch Spdt Hight Amp |
|
$ 30.18 | ||||||
| WS01F02431 | Oven Sensor (Replaces: WG02F04474) |
|
Immediately | $ 30.20 | |||||
| WG02F01134 | Moteur |
|
$ 169.32 | ||||||
| WG02F00731 | Blade Asm |
|
Immediately | $ 36.53 | |||||
| WG02A00475 | Pied Nivellement |
|
Immediately | $ 6.35 | |||||
| WG02F06883 | Bridge Board Asm |
|
$ 102.44 | ||||||
| WS01L01913 | Glissiﾃ#re Asm D. |
|
$ 50.42 | ||||||
| WS01L00767 | Guide |
|
$ 17.89 | ||||||
| WS01F01556 | Plunger Switch |
|
Immediately | $ 12.56 | |||||
| WG02L06613 | Dessus Vitre (noir) |
|
$ 1,662.44 | ||||||
| WG02L04802 | Carrosserie Asm.(noir) |
|
$ 221.14 | ||||||
| WG02L04756 | Panneau Asm Acier Inoxydable |
|
$ 427.98 | ||||||
| WG02L04751 | Panel Drawer Ss |
|
$ 185.31 | ||||||
| WG02L04625 | Panier Glissiere Asm. (noir) |
|
$ 413.30 | ||||||
| WG02L04570 | Bas Asm. |
|
$ 152.18 | ||||||
| WG02L04306 | Joint, Four |
|
$ 81.04 | ||||||
| WG02L04228 | Isolant Fil |
|
- |
