View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

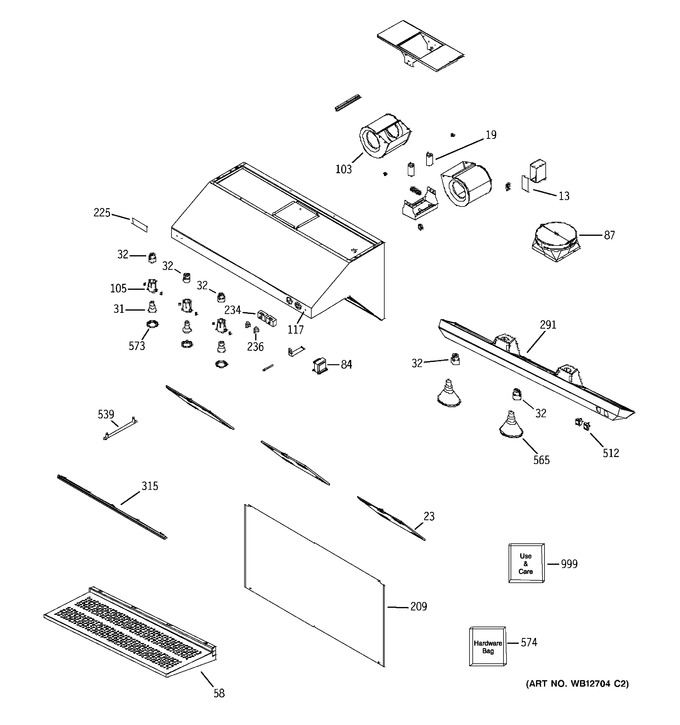

1 - Range Hood
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | WB02X10872 | Junction Box Cover |
|
- | |||||
| 19 | WB27X10669 | Capacitor |
|
- | |||||
| 23 | WB02X10903 | Filter, Baffle |
|
- | |||||
| 31 | WG02L09574 | 120v 50w Halogen Bulb (Replaces: WB08X10028) |
|
$ 66.14 | |||||
| 32 | WG02F00854 | Lampholder (Replaces: WB08X10030) |
|
$ 71.00 | |||||
| 58 | WB07X10662 | Shelf |
|
- | |||||
| 84 | WB26X21429 | Transformer Kit |
|
- | |||||
| 87 | WG02F12417 | Duct Transition W/damper (Replaces: WB02X10871) |
|
$ 712.00 | |||||
| 103 | WG02F11862 | Blower Hood Asm (Replaces: WB38X10070) |
|
$ 2,678.87 | |||||
| 105 | WB08X10032 | Lampholder Support |
|
- | |||||
| 117 | WB08X10033 | Indicator Light |
|
- | |||||
| 209 | WB61X10006 | Back Splash |
|
- | |||||
| 225 | WB01X10070 | Clip Logo |
|
- | |||||
| 225 | WB02X10832 | Monogram Logo |
|
- | |||||
| 234 | WB24X10110 | Switch, Motor/lamp |
|
- | |||||
| 236 | WG02L00400 | Knob Assembly, Zinc Die (Replaces: WB03X10261) |
|
$ 156.86 | |||||
| 236 | WG04L00422 | Knob Assembly (Replaces: WB03X10163) |
|
$ 59.78 | |||||
| 291 | WB07X10659 | Heat Lamp Panel 48" |
|
- | |||||
| 315 | WB02X10902 | Grease Tray |
|
- | |||||
| 512 | WB24X10111 | Heat-lamp Rocker Switch |
|
- | |||||
| 539 | WB02X10900 | Utensil Rod-taper 30" |
|
- | |||||
| 565 | WB08X10029 | 120v 175w Infrared Lamp |
|
- | |||||
| 573 | WB08X10031 | Bezel Lamp |
|
- | |||||
| 574 | WB01X10211 | Hardware Bag |
|
- | |||||
| 999 | 49-80152 | Instructions Install |
|
- | |||||
| 999 | 49-80150-1 | Installation |
|
- | |||||
| WG02L00400 | Knob Assy Chrome |
|
$ 156.86 | ||||||
| WG02F01566 | Switch Motor Lamp |
|
$ 155.79 |
