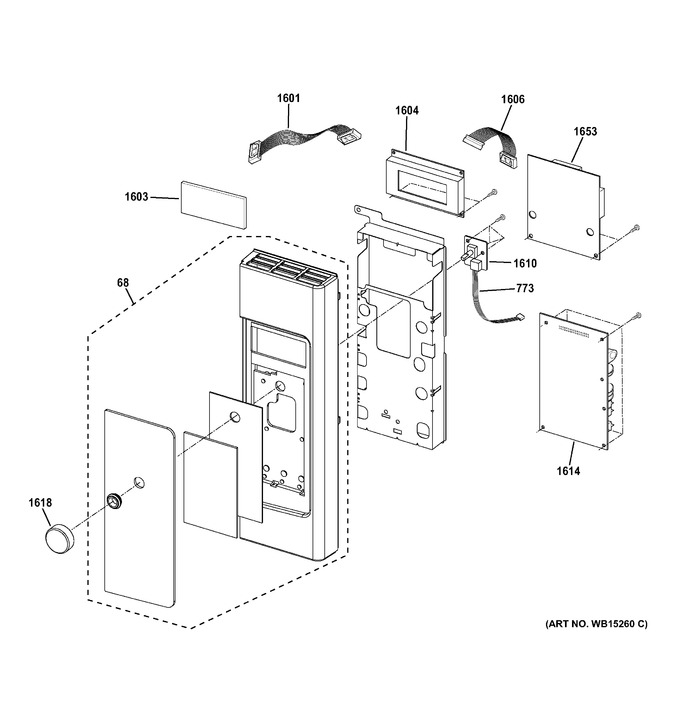

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 68 | WB56X21171 | Control Panel,bb |
|
- | |||||
| 773 | WB18X10411 | Harness,pcb To Dial Pcb |
|
- | |||||
| 1601 | WB18X10457 | Harness,single |
|
- | |||||
| 1603 | WB41X10001 | Cover,display |
|
- | |||||
| 1604 | WB06X10835 | Vf Display |
|
- | |||||
| 1606 | WB18X10459 | Harness,single |
|
- | |||||
| 1610 | WG02L09547 | Encoder Board (Replaces: WB27X11022) |
|
$ 88.13 | |||||
| 1614 | WB27X11114 | Smart Board |
|
- | |||||
| 1618 | WB03X10329 | Knob |
|
- | |||||
| 1653 | WB27X11113 | Board, Main |
|
- |
