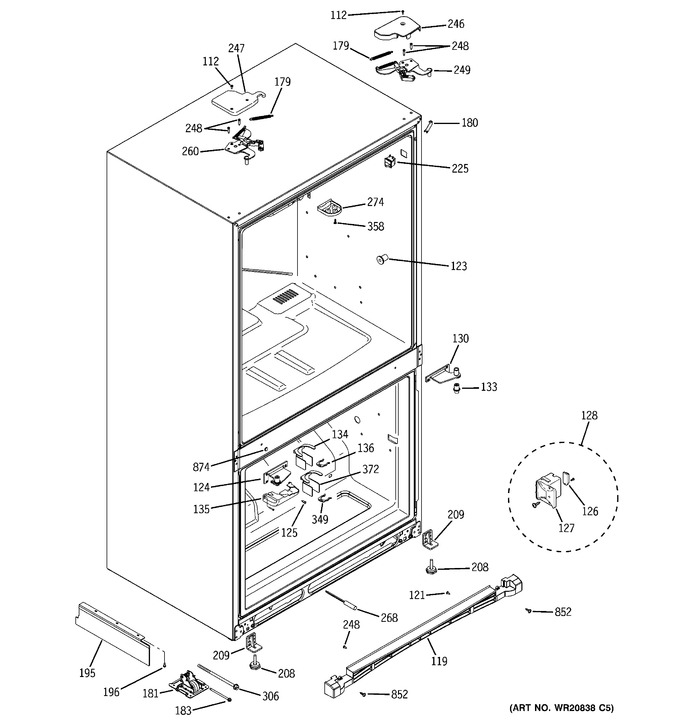

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Doors


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01F03225		Screw Hinge Cover   (Replaces: WR01X10379)				$ 3.97
119	WR02X12703		Grille Base Cover		Appelez-nous	-
121	WR01A00664		Scr 12-24 Tt Ovt 1.000 S   (Replaces: WR01X10918)				$ 4.20
123	WR01A00968		Support Shelf   (Replaces: WR02X12187)			Immediately	$ 3.97
124	WR13X10929		Center Hinge Asm Lh		Appelez-nous	-
125	WR01X10986		Scr 12-24 Tt Hxt20 .90 S		Appelez-nous	-
126	WR01F01731		Sensor Humidity   (Replaces: WR02X12711)			Immediately	$ 93.17
127	WR17X12443		Housing Humidity Sensor		Appelez-nous	-
128	WR01F01732		Sensor Humidity Asm   (Replaces: WR55X10748)				$ 132.44
130	WR13X10928		Center Hinge Asm Rh		Appelez-nous	-
133	WR01A00465		Pin Hinge Adj Bm   (Replaces: WR01X10793)			Immediately	$ 33.35
134	WR02X12587		Support Water Line		Appelez-nous	-
135	WR01L00846		Cover Hinge   (Replaces: WR02X13497)				$ 11.14
136	WR02X13059		Clip Locking		Appelez-nous	-
179	WR01A00582		Spring Closure   (Replaces: WR01X10827)			Immediately	$ 4.17
180	WR02X12704		Cap Corner Oc		Appelez-nous	-
181	WR01L02983		Mobility Front Asm   (Replaces: WR02X12334)				$ 15.28
183	WR01X10609		Screw Mobility		Appelez-nous	-
195	WR17X12382		Separator Air Hiside		Appelez-nous	-
196	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
208	WR01A00718		Screw Leveling   (Replaces: WR01X10686)				$ 4.20
209	WR02X12378		Bracket Leg Asm		Appelez-nous	-
225	WG03F05844		Switch Light   (Replaces: WR23X10179)			Immediately	$ 65.21
246	WR02X12705		Cover Hinge Top Rh		Appelez-nous	-
247	WR02X13499		Hinge Cover Lh		Appelez-nous	-
248	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
249	WR13X10566		Hinge Closure Asm		Appelez-nous	-
260	WR13X10930		Hinge Closure Asm		Appelez-nous	-
268	WR55X10711		Sensor Temperature		Appelez-nous	-
274	WR02X13500		Striker Top Mullion		Appelez-nous	-
306	WR02X12271		Screw Mobility		Appelez-nous	-
349	WR02X13498		Support Water Line		Appelez-nous	-
358	WR01X10065		Screw 10-32 Gxtt Flp 595		Appelez-nous	-
372	WR02X13503		Clip Locking		Appelez-nous	-
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.97
874	WR01X10987		Washer Hinge		Appelez-nous	-
	WR01A00718		Screw Leveling				$ 4.20
	WR01A00748		Service Kit I&w Door				$ 964.21
	WR01A00802		Slide Control Meat Pan				$ 13.97
	WR01A00830		Slide Upper Asm Lh 21 22				$ 115.52
	WR01A01824		Slide Upper Asm Rh 21   (Replaces: WR01A00833)				$ 152.08
	WR01A01053		Screw Mobility				$ 49.21
	WG03L06838		Wheel Mobility   (Replaces: WR01A01068)				$ 19.06
	WR01F00017		Air Tower Asm			Immediately	$ 193.86
	WR01F00138		Blower Fan Duct			Immediately	$ 209.42
	WR01F00241		Board Asm Main Control			Immediately	$ 292.81
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 123.62
	WR01F01936		Wheel Slide				$ 4.20
	WR01F02845		Connector			Immediately	$ 19.06
	WR01L00012		1/4 Union Connector				$ 10.52
	WR01L00905		Cover Top Veg Pan			Immediately	$ 114.45
	WR01L02006		Face Mullion Dd Asm (grey)				$ 77.66
	WR01L02285		Grille Base Cover				$ 62.29
	WG03F07366		Icemaker - Door Mounted   (Replaces: WR01L02568)			Immediately	$ 244.43
	WR01L04398		Side Track Lf				$ 17.18
	WR01L06232		Double Coil Water Tank				$ 40.49
	WR01F01494		Interface Dispenser Asm				$ 250.53
	PMMWF		Water Filter   (Replaces: WG03F00835)			Immediately	$ 81.88
	WG03F05844		Switch Light Fz   (Replaces: WG03F03565)			Immediately	$ 65.21
	WG03F09086		Switch Light   (Replaces: WG03F03974)			Immediately	$ 11.12
	WR02F04236		Hﾃ#lice Du Ventilateur Asm   (Replaces: WG03L00005)				$ 20.15
	WR01A00023		Articulation Mullion Asm				$ 214.66
	WR01A00393		Mullion Foamed Asm				$ 276.86
	WR01A00639		Scr10-16pl Flt25 5/8s Zn				$ 4.20
