SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)


7 - Installation Parts

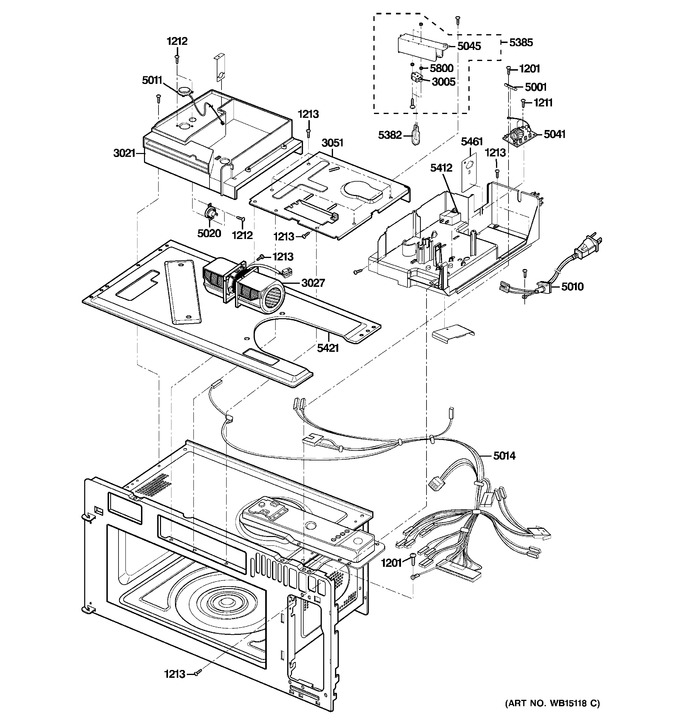

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1201	WB02X10777		Wb02x10745		Appelez-nous	-
1211	WB01X10130		Screw - Fuse		Appelez-nous	-
1212	WB02X10730		Screw - Pan Head Tapping		Appelez-nous	-
1213	WB02X10760		Screw Tapping Truss Head		Appelez-nous	-
3005	WG02L02137		Holder Assembly   (Replaces: WB06X10554)				$ 29.41
3021	WB02X11239		Air Tunnel		Appelez-nous	-
3027	WB26X10100		Motor Vent		Appelez-nous	-
3051	WB02X11240		Air Tunnel		Appelez-nous	-
5001	WG02F06332		Fuse   (Replaces: WB27X10388)			Immediately	$ 15.88
5010	WB18X10465		Power Cord Asm		Appelez-nous	-
5011	WG02F01437		Sensor Asm   (Replaces: WB27X10857)				$ 125.60
5014	WB18X10466		Harness,single		Appelez-nous	-
5020	WB20X10052		Thermostat				$ 11.91
5041	WG02A00311		Filter Assy Noise   (Replaces: WB27X10519)				$ 39.31
5045	WB02X11291		Cover Lamp		Appelez-nous	-
5382	WG03F00381		Lamp,halogen   (Replaces: WB36X10344)			Immediately	$ 31.83
5385	WB06X10783		Holder Asm		Appelez-nous	-
5412	WB27X10808		Capacitor		Appelez-nous	-
5421	WB06X10663		Insulator Asm		Appelez-nous	-
5800	WB01X10414		Supporter,housing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
