SELECT A DIAGRAM

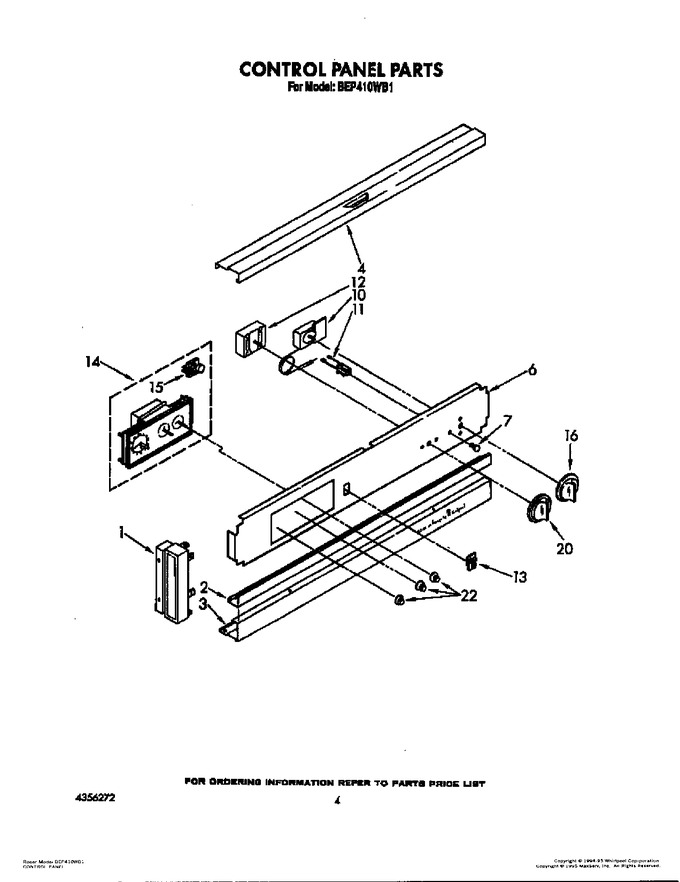

01 - Cover


02 - Oven


03 - Control Panel


04 - Oven Door


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312604		End Cap (screw, 8-18 X 5/8 (4))		Appelez-nous	-
1	3181002		End Cap (right Side)		Appelez-nous	-
1	3181001		End Cap (left Side)		Appelez-nous	-
2	3148703		Trim, Center		Appelez-nous	-
3	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
3	3181005		Trim, Bottom		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
4	3181003		Trim, Upper		Appelez-nous	-
6	3180628		Panel, Control		Appelez-nous	-
7	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
7	3180920		Lens, Indicator		Appelez-nous	-
10	660565		Thermostat		Appelez-nous	-
10	487384		Screw (2)		Appelez-nous	-
11	314031		Indicator Light (250v)				$ 62.88
12	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
12	661453		Switch, Selector (4 Position)		Appelez-nous	-
13	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 93.95
14	WP965173		Screw (4)   (Replaces: 246132)			Immediately	$ 11.87
14	3181009		Timer, Automatic (includes Illus. 15)		Appelez-nous	-
15	309822		Motor, Timer		Appelez-nous	-
16	3180949		Knob, Thermostat (adjustable)		Appelez-nous	-
20	3181006		Knob, Selector		Appelez-nous	-
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	261887		Coffee (uncut)		Appelez-nous	-
22	261891		Harvest Gold (uncut)		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
22	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
22	313523		Knob, Timer (3)				$ 13.66
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
22	261582		Grease		Appelez-nous	-
22	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
22	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	261888		New Avocado		Appelez-nous	-
22	261886		Coffee		Appelez-nous	-
22	261890		Harvest Gold		Appelez-nous	-
22	285006		Paint, Spray 13 Oz. (black)				$ 59.89
22	350942		Primer (white)   (Replaces: 206922)				$ 94.14
22	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
