View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

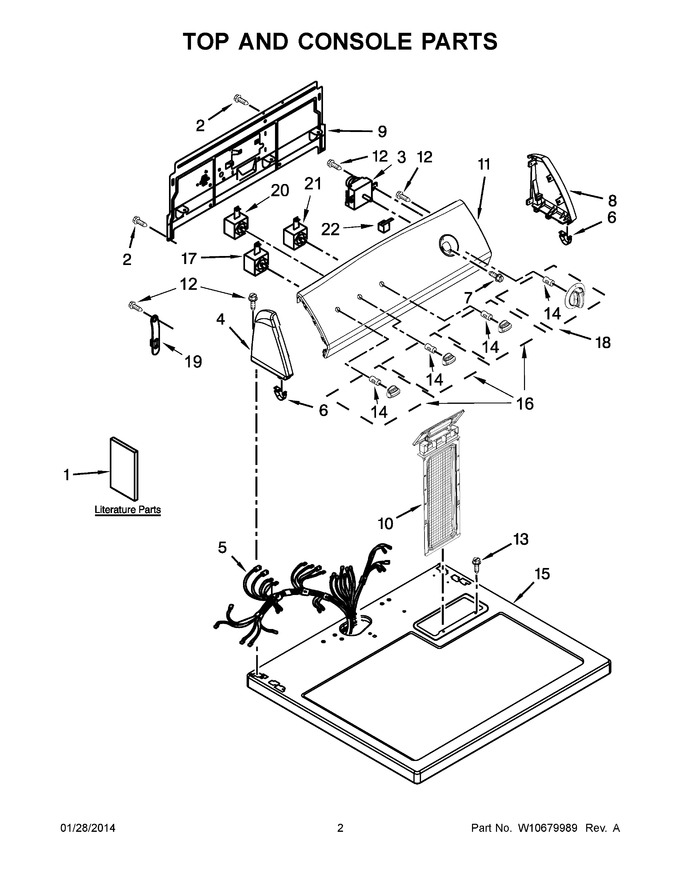

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10636932 | Use And Care Guide |
|
- | |||||
| 1 | W10631596 | Wiring Diagram |
|
- | |||||
| 1 | W10629448 | Installation Instructions |
|
- | |||||
| 2 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10112668 | Switch, Push-to-start (Replaces: W10112668) |
|
$ 128.11 | |||||
| 4 | WPW10251358 | End Cap (left) (white) (Replaces: W10251358) |
|
$ 51.42 | |||||
| 5 | W10599162 | Harness, Main |
|
- | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 8 | WPW10251355 | End Cap (right) (white) (Replaces: W10251355) |
|
$ 51.39 | |||||
| 9 | W10121161 | Panel, Rear Console |
|
- | |||||
| 10 | W10120998 | Screen, Lint (Replaces: W10596627) |
|
$ 67.16 | |||||
| 11 | W10598022 | Console (white) |
|
- | |||||
| 12 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 13 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 15 | 8559781 | Top (white) |
|
- | |||||
| 16 | W10317458 | Assembly, Push-to-start Knob (grey) |
|
- | |||||
| 17 | WP3979618 | Timer, 60 Hz. (Replaces: 3979618) |
|
$ 385.28 | |||||
| 18 | W10317457 | Assembly, Timer Knob (grey) |
|
- | |||||
| 19 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 20 | WP3405156 | Switch, Wrinkle Guard (Replaces: 3405156) |
|
$ 152.79 | |||||
| 21 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 22 | 3952439 | Buzzer, Mini |
|
- |
