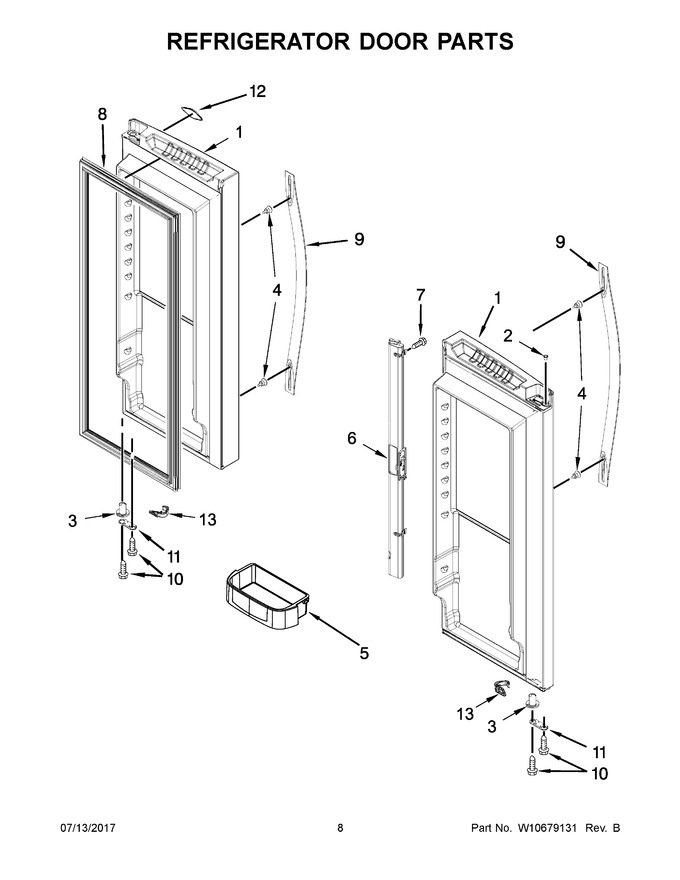

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107881WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107881W) |
|
$ 1,220.14 | |||||
| 2 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 3 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 4 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 228.91 | |||||
| 9 | W10830136 | Handle, Door (white) (Replaces: W10686459) |
|
$ 196.17 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 11A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 11B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 13A | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 13B | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 13C | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 13D | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 13E | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 1A | 13107881BQ | Door, Refrigerator Left Hand (black) (Replaces: 13107881B) |
|
$ 1,250.60 | |||||
| 1B | 13107881SQ | Door, Refrigerator Left Hand (stainless) (Replaces: 13107881S) |
|
$ 1,208.84 | |||||
| 1C | 13107855WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107855W) |
|
$ 893.74 | |||||
| 1D | 13107855BQ | Door, Refrigerator Right Hand (black) (Replaces: 13107855B) |
|
$ 1,158.68 | |||||
| 1E | 13107855SQ | Door, Refrigerator Right Hand (stainless) (Replaces: 13107855S) |
|
$ 1,143.87 | |||||
| 3A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 3B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 5A | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 6B | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 8A | W11368721 | Gasket, Door (black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 8B | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9A | W10830130 | Handle, Door (black) (Replaces: W10686442) |
|
Immediately | $ 189.54 | ||||
| 9B | W11459378 | Handle, Door (stainless) (Replaces: W10686482) |
|
Immediately | $ 183.89 |
