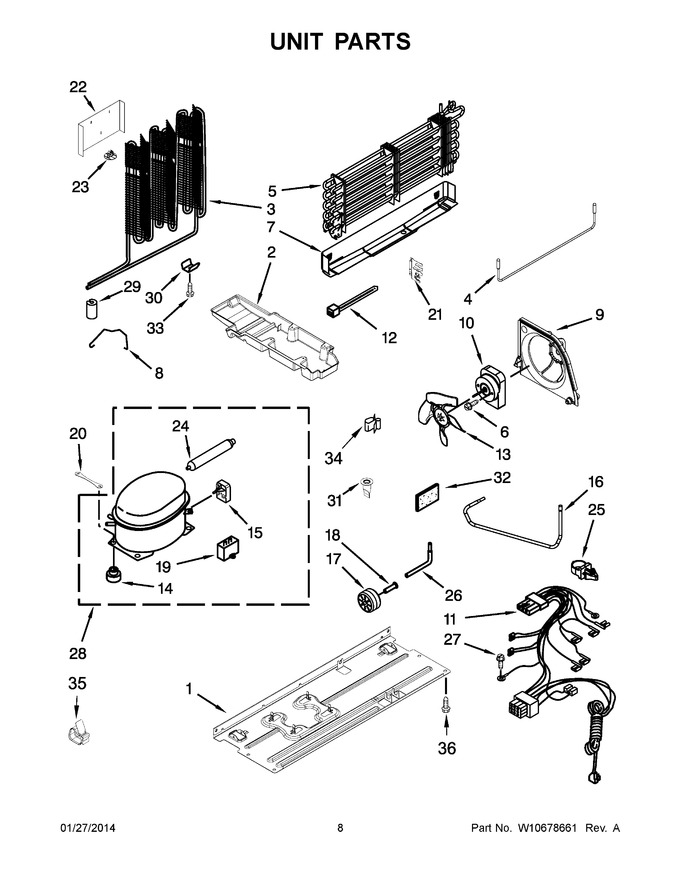

05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Plate, Unit Mounting |
|
$ 164.30 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 151.95 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 278.20 | |||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 361.39 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | 2212996 | Strap Bale |
|
$ 12.72 | |||||
| 9 | WP2315541 | Baffle, Air (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 10 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 113.96 | ||||
| 11 | W11625681 | Harness, Unit (Replaces: W10410814) |
|
$ 113.83 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | WPW10399283 | Start Device (Replaces: W10399283) |
|
$ 176.31 | |||||
| 16 | W10524735 | Tube, Suction |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 23.44 | |||||
| 22 | W10349514 | Cover, Condenser Bottom |
|
$ 82.40 | |||||
| 23 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 24 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 25 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 26 | W11676464 | Tube, Process (Replaces: 2212848) |
|
$ 108.61 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 28 | W10822653 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10399120) |
|
$ 390.64 | |||||
| 29 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 31 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 65.56 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 34 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 35 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 36 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 3.7 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
