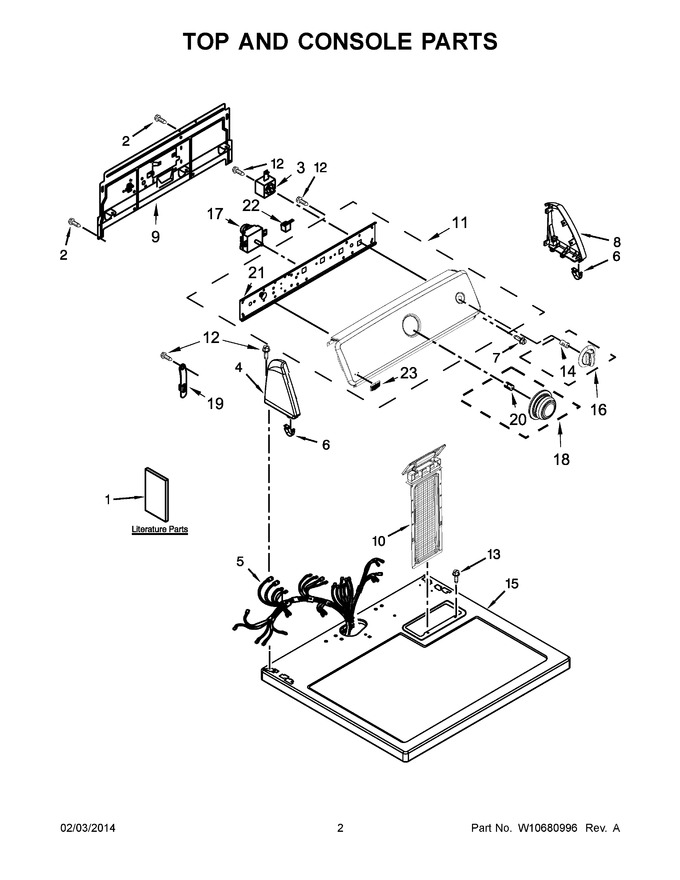

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629455		Owners Manual		Appelez-nous	-
1	W10631594		Wiring Diagram		Appelez-nous	-
1	W10629448		Installation Instructions		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
3	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 103.59
4	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
5	W10599165		Harness, Main		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
8	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
9	W10121161		Panel, Rear Console		Appelez-nous	-
10	W10120998		Screen, Lint   (Replaces: W10596627)				$ 74.66
11	W10598018		Console (white)		Appelez-nous	-
12	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	8559781		Top (white)		Appelez-nous	-
16	WPW10317455		Assembly, Push-to-start Knob (grey)   (Replaces: W10317455)				$ 57.00
17	WP8299781		Assembly, Timer (60 Hz.)   (Replaces: 8299781)			Immediately	$ 342.50
18	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 57.12
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.35
20	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
21	W10112604		Bracket, Control		Appelez-nous	-
22	3952439		Buzzer, Mini		Appelez-nous	-
23	W10323734		Assembly, Badge				$ 57.56
